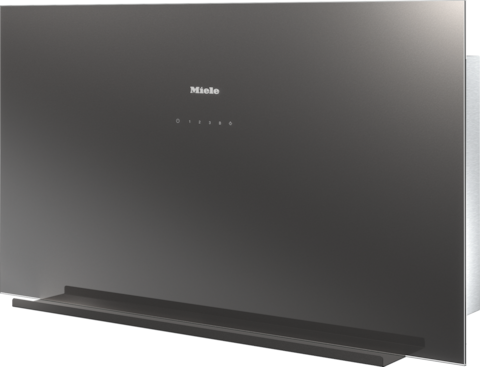

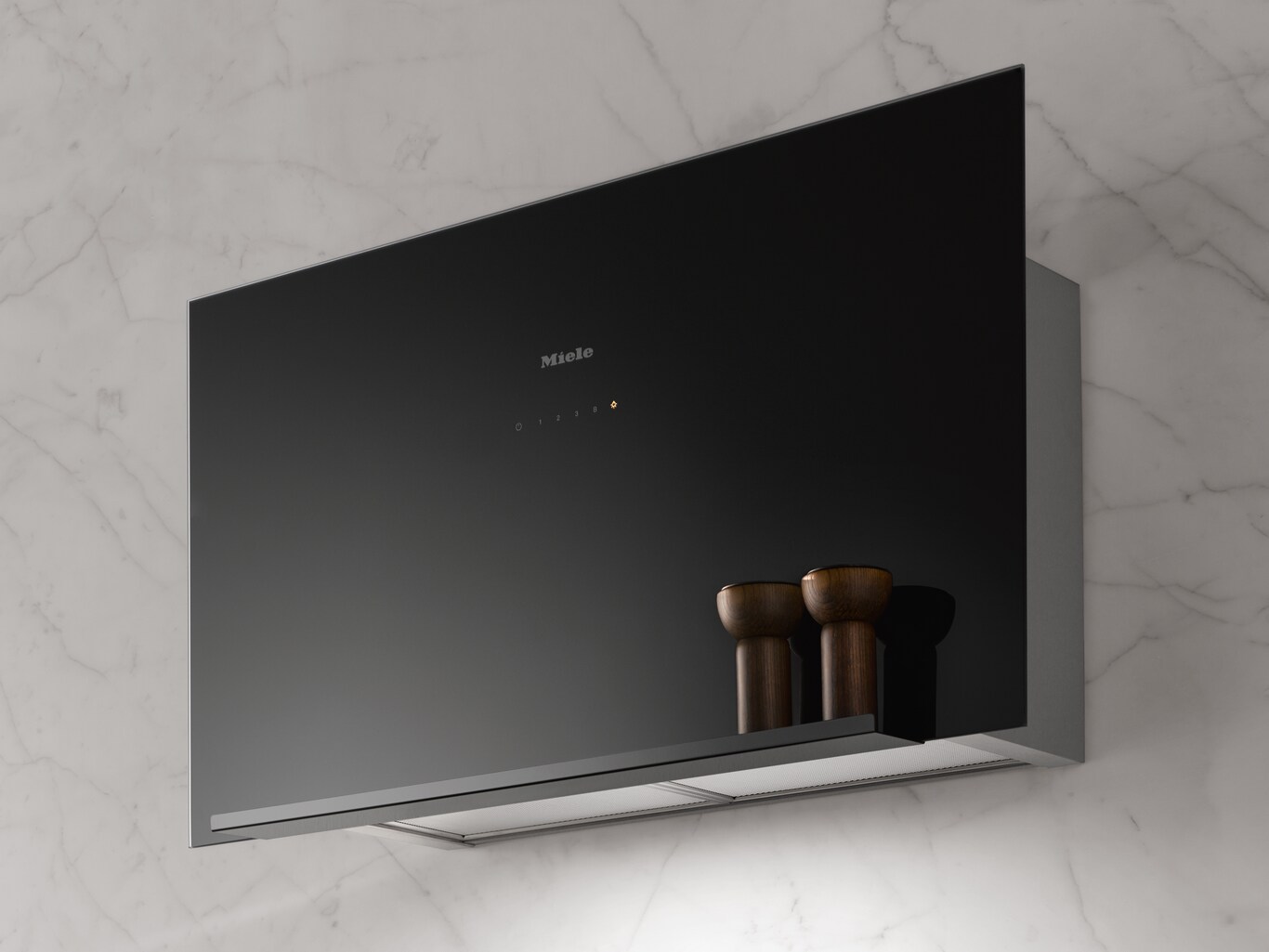

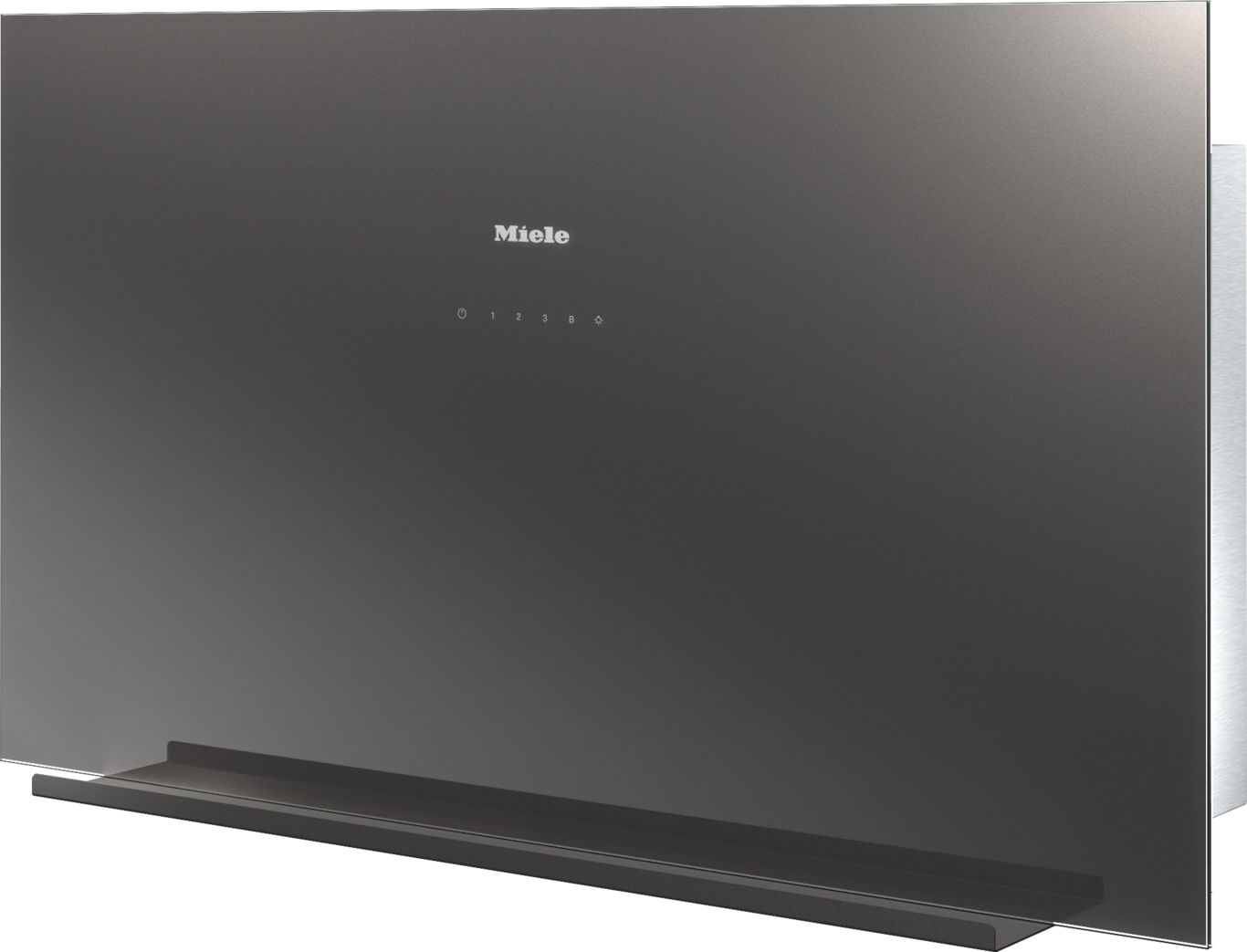

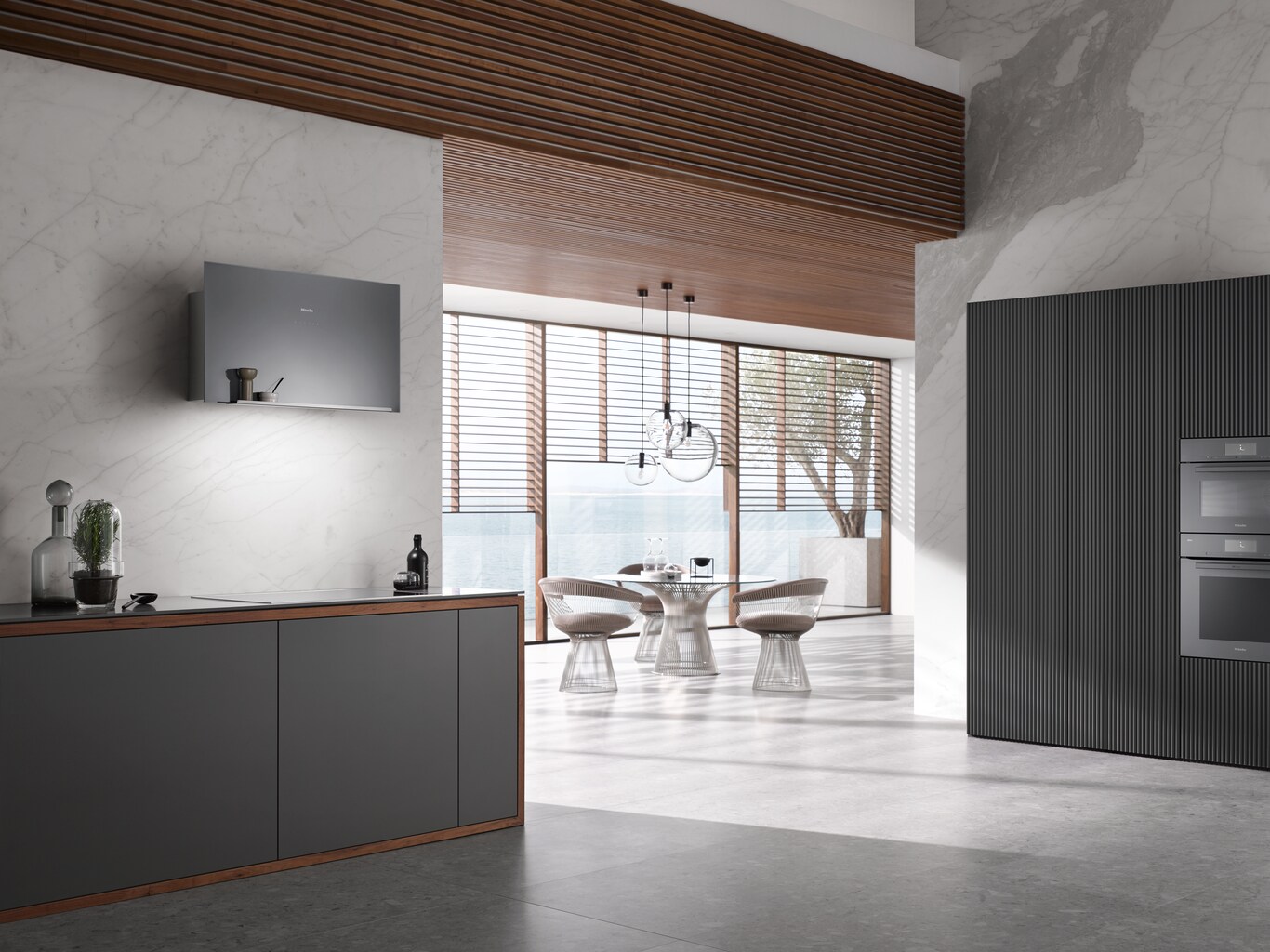

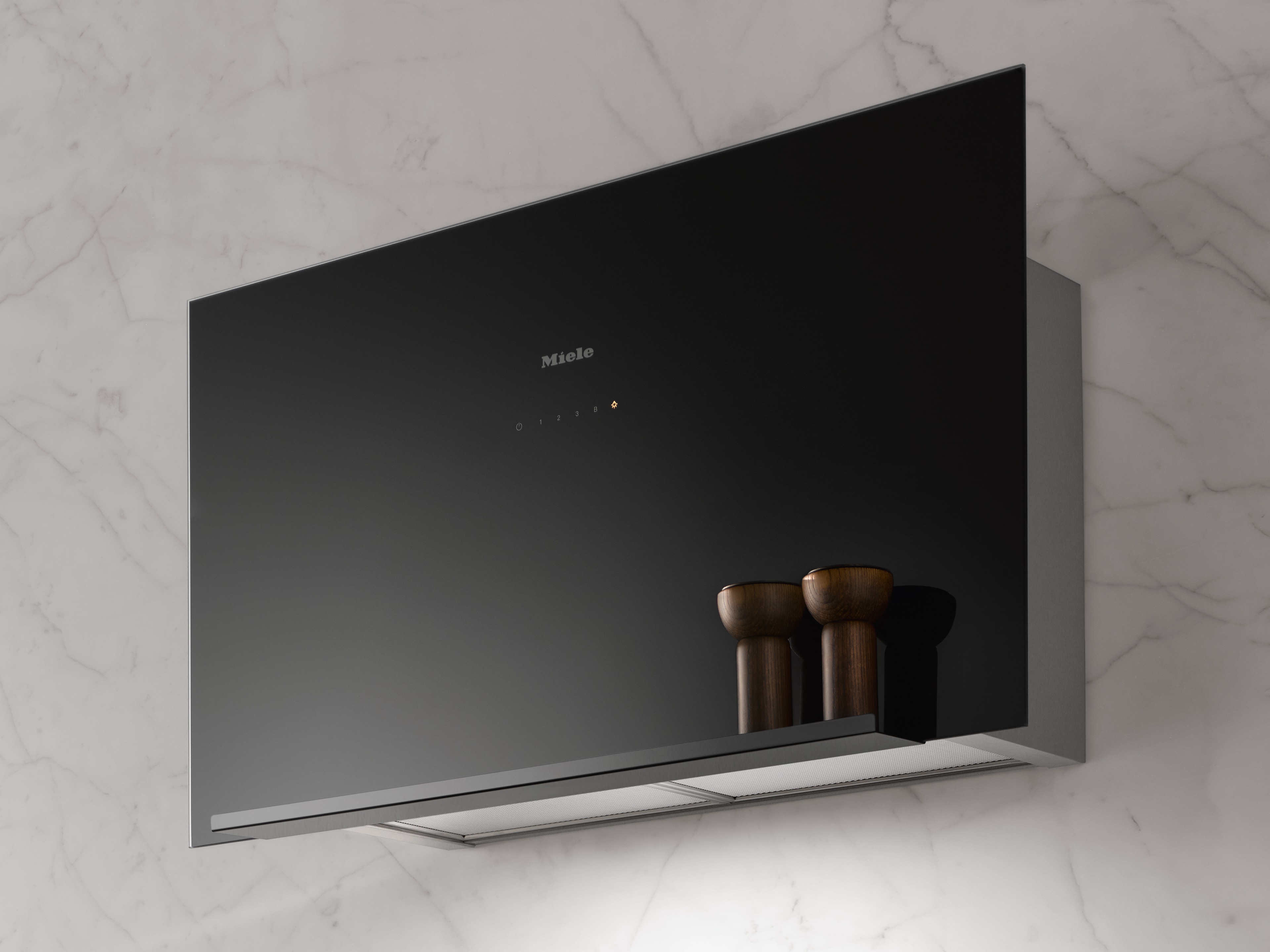

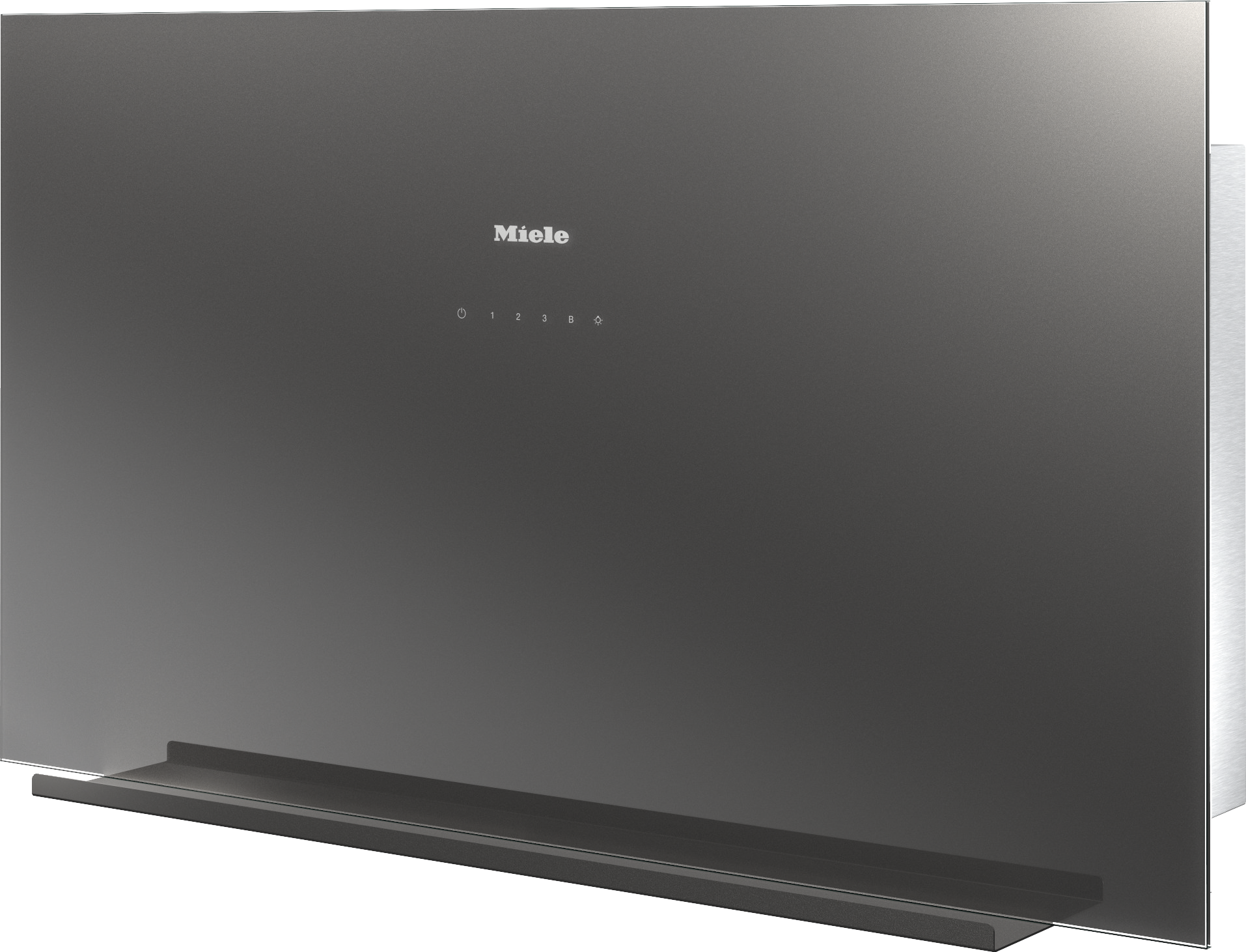

  • Miele UAE - DA 9090 W Screen Graphite grey – Cooker hoods - 1
  • Miele UAE - DA 9090 W Screen Graphite grey – Cooker hoods - 2
  • Miele UAE - DA 9090 W Screen Graphite grey – Cooker hoods - 3
  • Miele UAE - DA 9090 W Screen Graphite grey – Cooker hoods - 4
  • Miele UAE - DA 9090 W Screen Graphite grey – Cooker hoods - 5
Wall mounted cooker hood

DA 9090 W Screen Graphite grey

With vertical glass front and extremely flat design for more headroom.
Colour:Graphite grey
sale priceAED3,900
1
All product prices incl. VAT at 5%.


Product details

  • Linear design with 880 mm width and minimum depth of 260 mm
  • Modern touch controls on glass front
  • LED strip for uniform lighting
  • Wide
    rack
    – can be used as a shelf for herbs, for example
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
DA 9090 W Screen
Manufacturer material number
11323810
EAN number
4002516258278
Marketing class
Discovery 1
Wall mounted cooker hood
Type of air guide
Can be retrofitted
Active charcoal filter (order separately)
DKF 29
Colour
Graphite grey
Electronic controls
Touch controls
Controls
Touch-on-glass controls
Power levels (number without Booster level)
3
Booster levels
1
Silence package
Easy-to-clean canopy interior – CleanCover
Energy efficiency class (A+++ to D)
A
Annual energy consumption in kWh/year
54.6
Fluid dynamic efficiency class
A
Lighting efficiency class
A
Grease filtering efficiency class
B
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
Number x W
1 x 5 W
Light intensity in Lx
400 lx
Colour temperature in K
3500 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
260
Air throughput in Level 2 (m³/h) according to EN 61591
330
Air throughput in Level 3 (m³/h) according to EN 61591
415
Air throughput in Booster level 1 (m³/h) according to EN 61591
675
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
51
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
56
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
61
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
70
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
37
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
47
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
56
Air throughput in Level 1 (m³/h) according to EN 61591
240
Air throughput in Level 2 (m³/h) according to EN 61591
315
Air throughput in Level 3 (m³/h) according to EN 61591
425
Air throughput in Booster level 1 (m³/h) according to EN 61591
625
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
55
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
61
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
67
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
41
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
47
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
53
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
60
Safety shut-off
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm
880 x 500 x 260
Overall height for vented and external in in. (mm)
500
Overall height for extraction mode and external mode cooker hoods in mm
500
Overall height for recirculation in in. (mm)
500
Overall height for recirculation mode cooker hoods in mm
500
Canopy width in in. (mm)
880
Canopy height in in. (mm)
500
Depth of hood canopy in in. (mm)
260
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
21
Length of supply lead in m
1.5
Standard plug fitted
Total rated load in kW
0.265
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm
150
Non-return flap
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
EAN
4002516258278

What's included

Non-return flap
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Performance and convenience as standard
    Performance and convenience as standard

    Silence

    Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Performance and convenience as standard

Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Downloads

Product Fact Sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000016/200001611/20000161136.png
Descriptions
DA9091W, DA9092W (Installation drawings)
1) Installation area for the mains connection., 2) Cut-out when ducting to the rear. Alternative vent connection at the back., 3) Air outlet for recirculation. A distance of at least 200 mm must be maintained between the top of the appliance and the ceiling or any furniture units installed above the appliance.,
POSTSCRIPT
Download
https://media.miele.com/images/2000016/200001611/20000161139.png
Descriptions
DADC9000 (Installation drawings)
1) Installation area for exhaust air ducting with DA 909x W., 2) Appliance height with DA 909x W.,
POSTSCRIPT
Download
