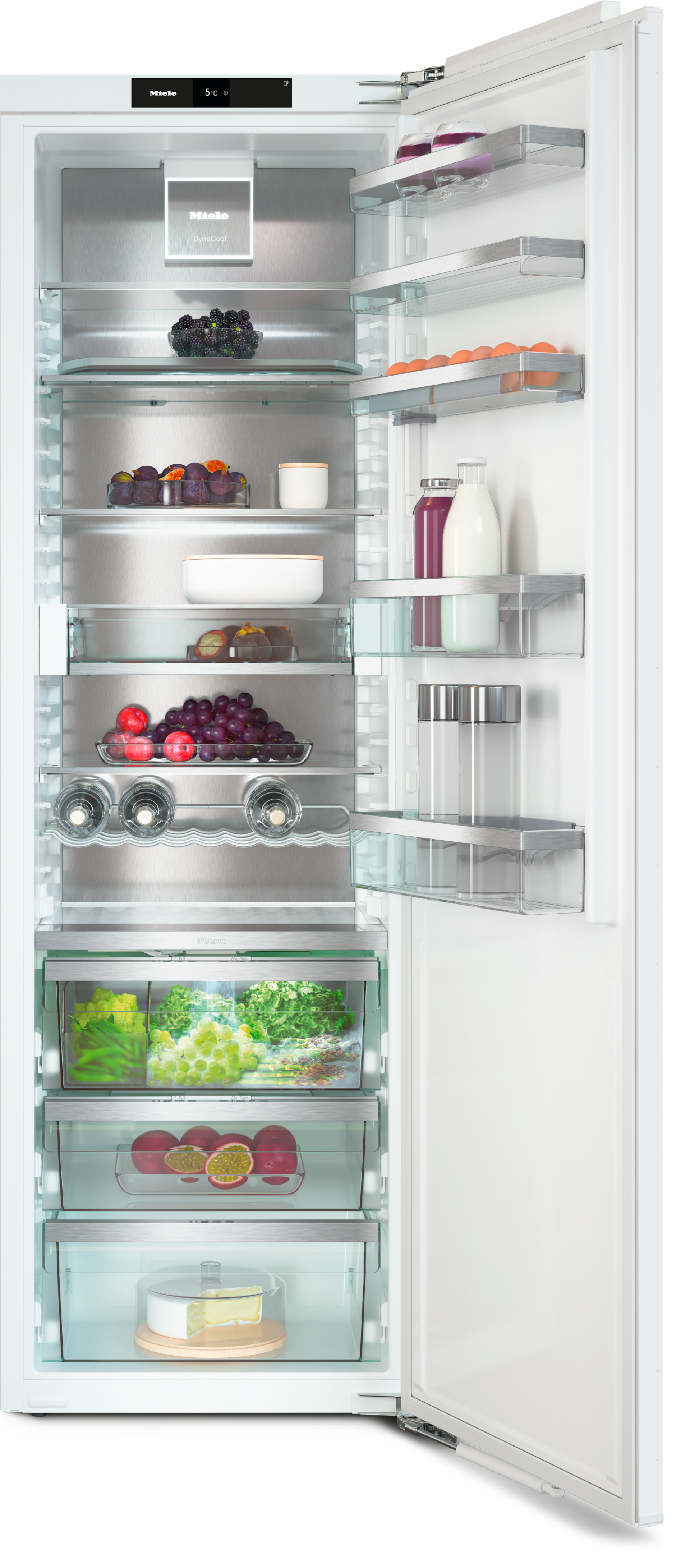

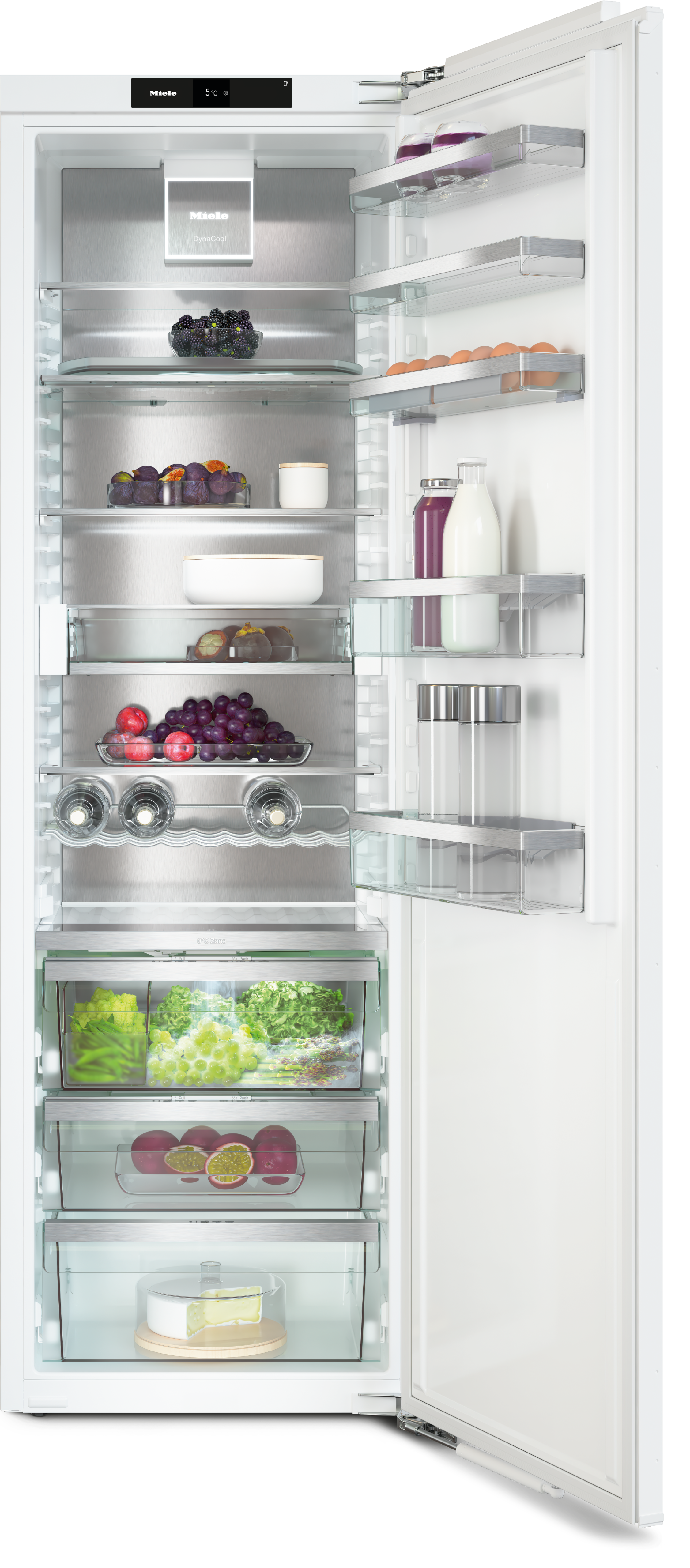

Built-in refrigerator, 178 cm niche heightDIAMOND
KS 7793 D
with PerfectFresh Active, FlexiLight 2.0 and FlexiTray for maximum convenience.Product details
- Fresh 5x longer with active humidification –PerfectFresh ActiveLoading...
- Individually adjustable glass shelf lighting withFlexiLight 2.0Loading...
- Uniform temperature distribution inside the appliance –DynaCoolLoading...
- Easy to remove items thanks to pivotable glass shelf –FlexiTrayLoading...
- Door shelfheights can be adjusted individuallyLoading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety Information
Refrigerator
Built-in appliance
Integrated appliance
Door hinge right
Convertible door hinging
Side-by-side enabled
Loading...
Refrigeration section lighting FlexiLight 2.0
Loading...
Fan lighting
Freshness system lighting
Networking with Miele@home
Loading...
Freshness system PerfectFresh Active
Loading...
Fine adjustment inner door
Loading...
ComfortClean
Loading...
ComfortSize
Loading...
DynaCool
Loading...
SoftClose
Loading...
SelfClose
Loading...
Operating concept FreshTouch
Fridge compartment can be switched off No
SuperCool
No. of temperature zones 2
Sabbath mode
Loading...
Party mode
Loading...
Holiday mode
Loading...
No. of shelves 4
of which illuminated 3
Chrome-plated metal bottle rack
No. of crisper drawers 3
Dry back wall CleanSteel
Loading...
CompactCase
Loading...
FlexiTray
Loading...
Number of inner door racks for tinned food 3
Door rack for bottles 2
Door shelves 5
Lock function
Acoustic door alarm
Optical door alarm
Niche width in mm min. 560
Niche width in mm max. 570
Niche height in mm min. 1772
Niche height in mm max. 1788
Niche depth in mm 550
Appliance dimensions (W x H x D) in mm 559 x 1770 x 546
Appliance width in mm 559
Appliance height in mm 1770
Appliance depth in mm 546
Weight in kg 74.5
Door hinge technology Fixed door
Max. door front weight – refrigerator, in kg 26
Climate class SN-T
Refrigerator compartment in l 198
including PerfectFresh zone in l 98
Total usable capacity in l 296
Current consumption (mA) 1200
Voltage in V 220-240
Fuse rating in A 10
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 2.2
Replacing lamps Service
Egg tray
PerfectFresh organisation box
EAN 4002516421078
Egg tray
PerfectFresh organisation box
Cleverly networked
Miele@home2,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Miele sets the standard for keeping your food fresh!
PerfectFresh Active
Thanks to active humidification and ideal temperatures, your food stays fresh up to five times longer.
A perfect view of your food
FlexiLight 2.0
Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.
Overview of food; easy to remove items
FlexiTray pivotable glass shelf
Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.
Maximum flexibility
Fine adjustment on inner door
Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.
Ideal cooling distribution with an appealing design
CleanSteel rear panel
Clean and cool: the CleanSteel rear panel ensures excellent cooling distribution in Miele refrigerators.
PerfectFresh Active
Thanks to active humidification and ideal temperatures, your food stays fresh up to five times longer.CleanSteel rear panel
Clean and cool: the CleanSteel rear panel ensures excellent cooling distribution in Miele refrigerators.Miele@home2,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.FlexiLight 2.0
Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.FlexiTray pivotable glass shelf
Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.Fine adjustment on inner door
Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.
DynaCool
Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.
ComfortClean
The high-quality door shelves are easy to clean in the dishwasher.
SoftClose
Quiet and reliable closing: the gently self-closing doors prevent items from falling out.
ComfortSize
Practical storage: the extensive depth allows an entire baking tray to be stored in the refrigeration appliance.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
K7733E, K7763E, K7732D, K7732E, K7734F, K7764E, K7743E, K7744E, K7773D, K7774D, built-in
*The declared energy consumption was calculated in a 560 mm deep niche. The appliance is fully functional in a 550 mm niche but the energy consumption will be slightly higher. POSTSCRIPT
Descriptions
K7733E, K7763E, K7732E, K7734F, K7764E, K7743E, K7744E, K7773D, K7774D, side view
K7733E, K7763E, K7732E, K7734F, K7764E, K7743E, K7744E, K7773D, K7774D, side view POSTSCRIPT
