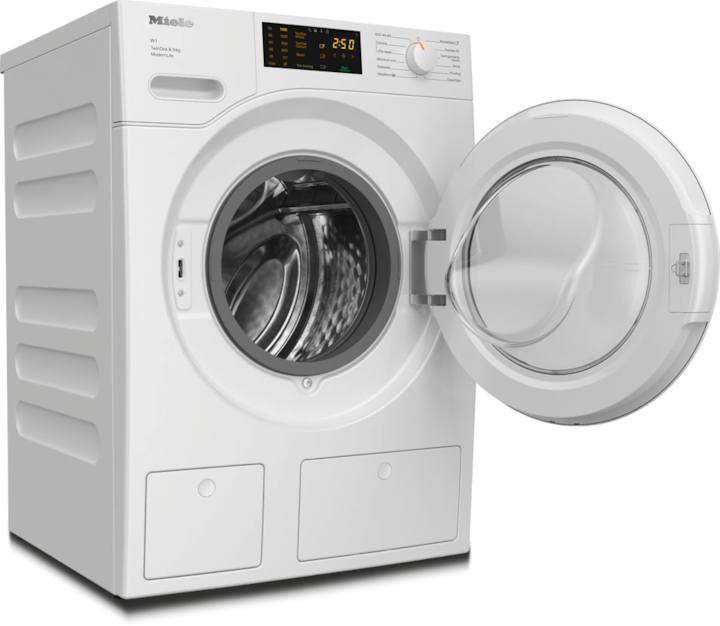

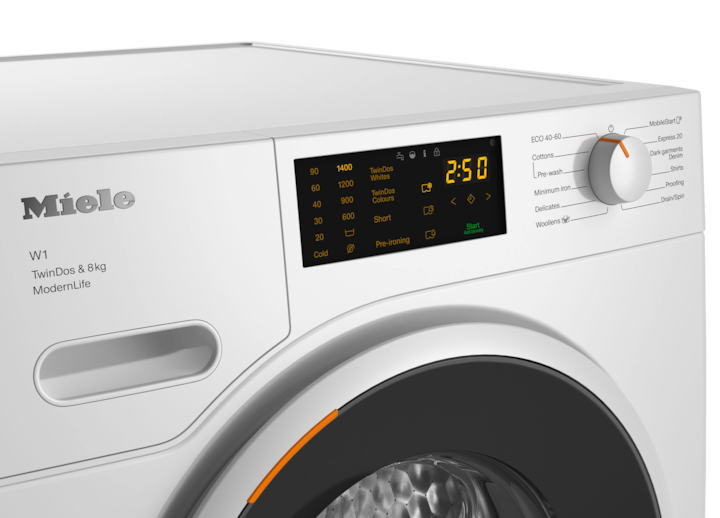

  • Miele UAE - WWD660 WCS TDos & 8kg – Washing machines - 1

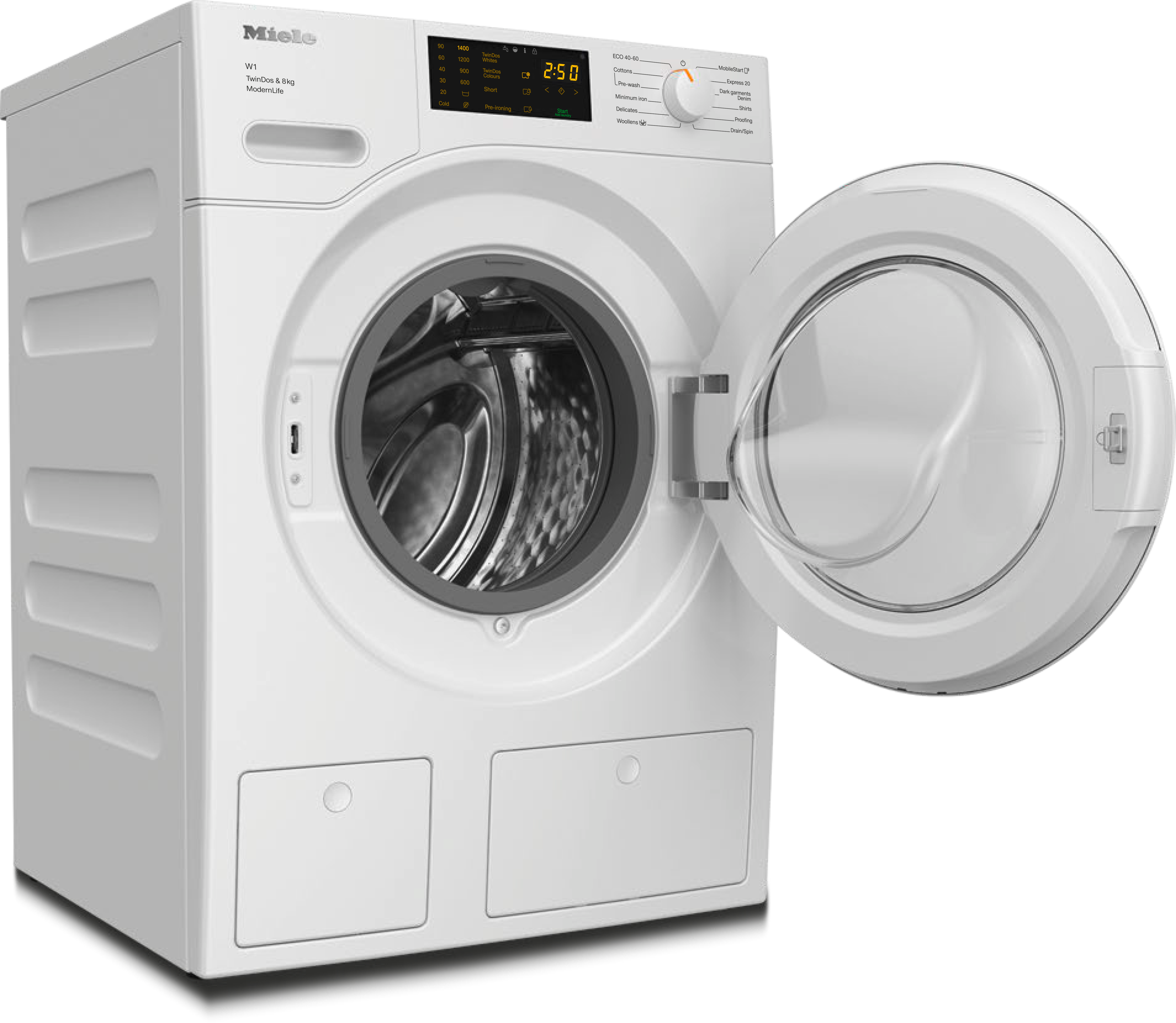

  • Miele UAE - WWD660 WCS TDos & 8kg – Washing machines - 2

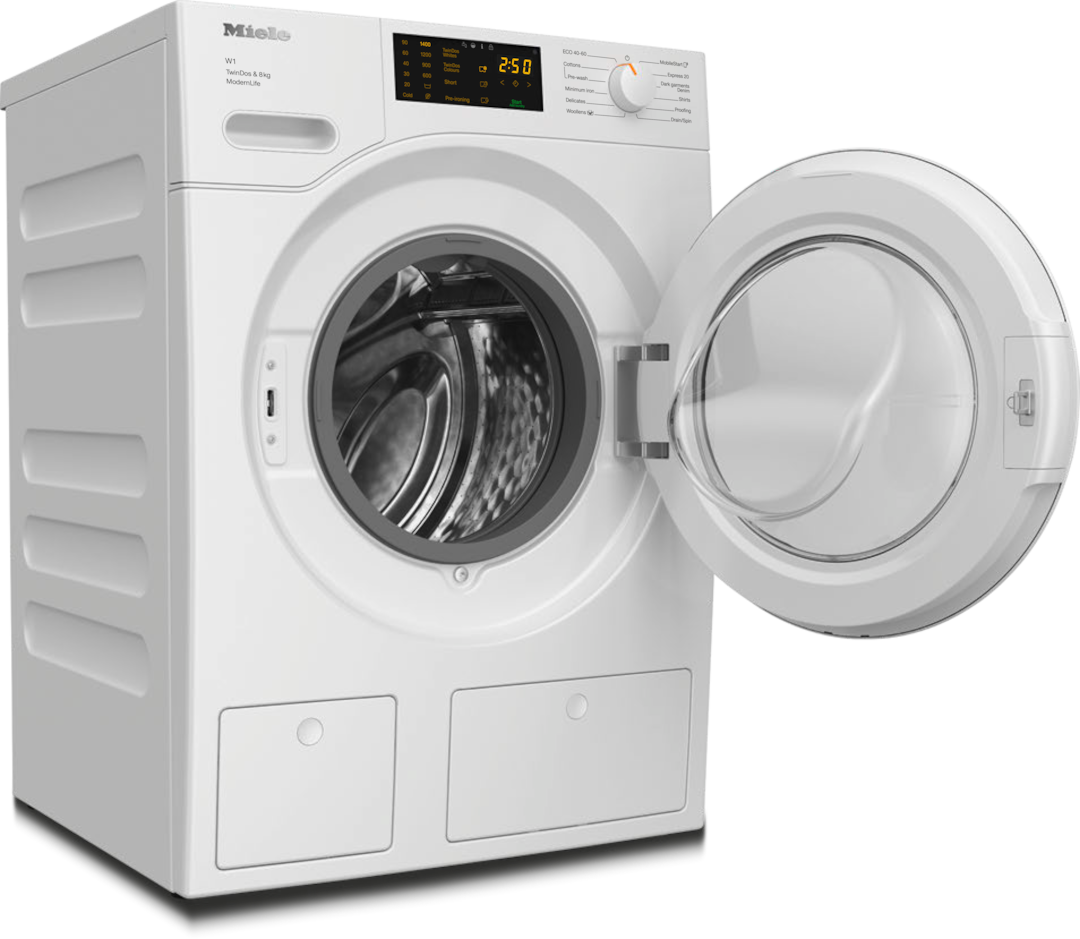

  • Miele UAE - WWD660 WCS TDos & 8kg – Washing machines - 4

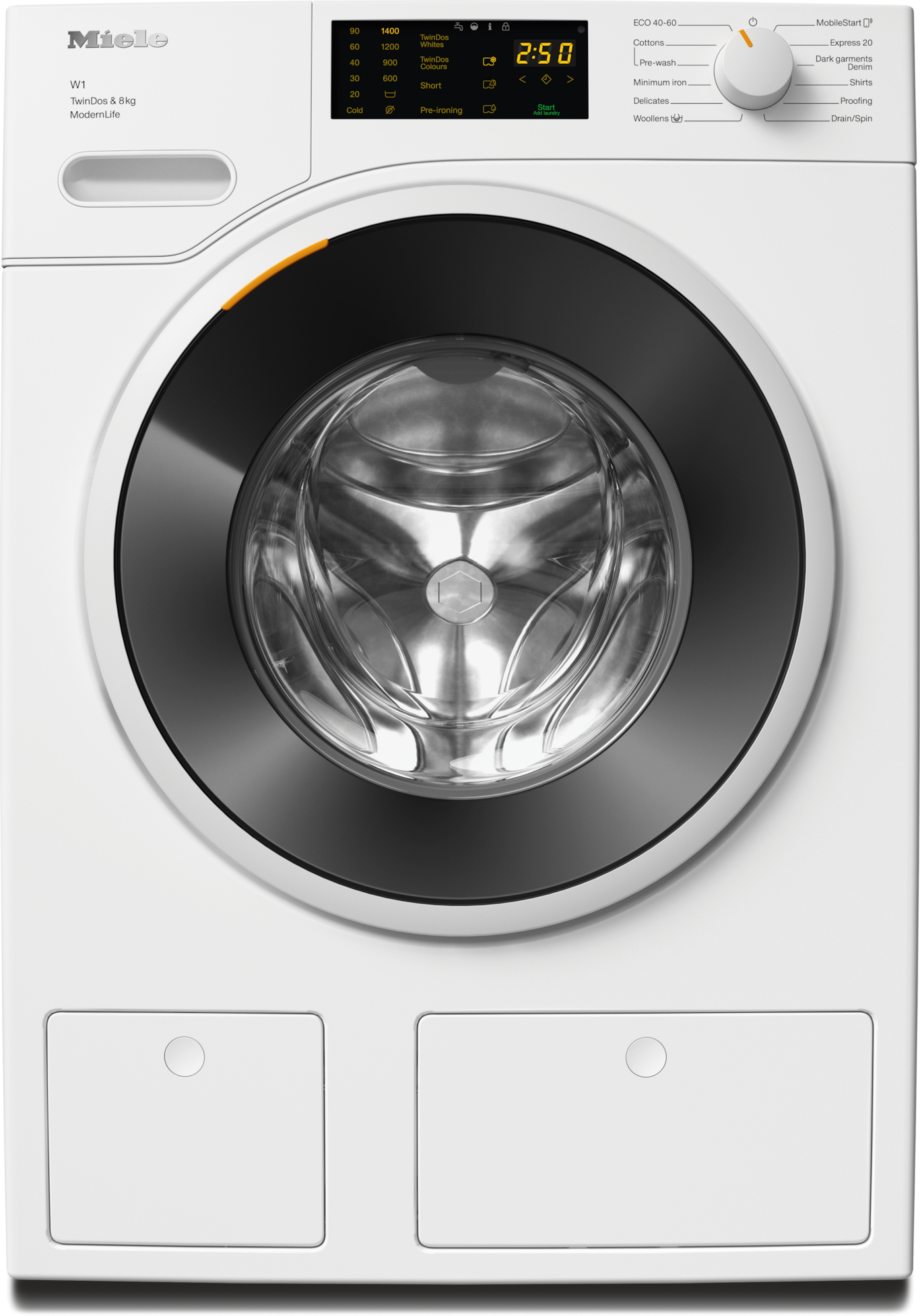

  • Miele UAE - WWD660 WCS TDos & 8kg – Washing machines - 5
  • Miele UAE - WWD660 WCS TDos & 8kg – Washing machines - 6
W1 front-loader washing machine:GOLD

WWD660 WCS TDos & 8kg

A I 8 kg I 1400 rpm I Automatic dispensing I Pre-ironing I Miele@home
sale priceAED6,700
1
All product prices incl. VAT at 5%.


Product details

  • Tested for
    20 years
    of perfect laundry care2,
  • Save energy in the best energy efficiency class (A)
  • Precise and automatic detergent dispensing with
    TwinDos®
    6,
  • The
    Pre-ironing
    Extra reduces creasing, saving up to 50 % time and effort8,
  • Complete app control of your washing machine with
    Miele@home
    3,
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety Information

Product data sheet

Model identifier WWD660 WCS TDos & 8kg
Manufacturer material number 11598210
EAN number 4002516381716
Marketing class
Gold
Suitable for stacking
Side-by-side
Slot-in
Door hinge right
Product brand W1 White Edition
Front-loader
Max. spin speed 1400
Rinse hold
Without spin function
Appliance colour Lotus white
Control panel colour Lotus white
Door design Obsidian black with white ring
Rotary selector colour Lotus White
Control panel version 5° inclined
Control type Rotary control
Display DirectSensor yellow, 7 segment
TwinDos automatic detergent dispensing
CapDosing portioned dispensing
Honeycomb drum
Load in kg 8
Networking with Miele@home
Delay start up to 24 hours
Time left display
AutoClean detergent drawer
AddLoad
Low temperature wash "Cold" and "20 °C"
Automatic load control
Flow meter
Foam sensing
ProfiEco motor
Cottons (coloureds)
Cottons with pre-wash
Minimum iron
Delicates
Shirts
Woollens (hand-washable)
Express 20
Dark garments / Denim
Proofing
Cottons arrow
Drain / Spin
ECO 40-60
Short
Pre-ironing with steam
Water protection system Watercontrol-System
Safety lock
PIN-Code
Optical interface
Dimensions in mm (width) 596
Dimensions (H x W x D) in mm 850 x 596 x 643
Dimensions in mm (height) 850
Dimensions in mm (depth) 643
Appliance depth in mm with opened door 1077
Weight in kg 89
Total rated load in kW 2.100-2.400
Voltage in V 220-240
Fuse rating in A 13
Frequency in Hz 50
Length of water inlet hose in m 1.60
Length of water drain hose in m 1.50
Length of supply lead in m 2
UltraPhase 1 + 2
Voucher for 5 Miele UltraPhase cartridges
EAN 4002516381716

What's included

UltraPhase 1 + 2
Voucher for 5 Miele UltraPhase cartridges
  • Smart networking

    Smart networking

    Miele@home3,

    Connect your washing machine to your home network and control it conveniently and intuitively via the app.

  • Tested for 20 years of perfect laundry care

    Tested for 20 years of perfect laundry care

    Tested for the equivalent of 20 years’ use2,

    Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.

  • Best liquid detergent system with push of a button

    Best liquid detergent system with push of a button

    TwinDos® automatic detergent dispensing6,

    Dispensing the right amount at key moments throughout a wash programme saves you up to 30 % detergent.

  • Always the right detergent for every application

    Always the right detergent for every application

    CapDosing portioned dispensing7,

    Our portioned caps are available with a range of specialised detergents tailored to match your wash programmes.

Safety

Safety thanks to an additional sensor
Safety thanks to an additional sensor

Water Control System (WCS)

WCS monitors the water intake, detects leakages and water in the floor tray.

Quality

Tested for 20 years of perfect laundry care
Tested for 20 years of perfect laundry care2,

Tested for the equivalent of 20 years’ use2,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.2,

User convenience

Smart networking
Smart networking

Miele@home3,

Connect your washing machine to your home network and control it conveniently and intuitively via the app.
Add or remove single items
Add or remove single items

AddLoad

Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the programme.

Efficiency

Tailored to your load
Tailored to your load

Automatic load recognition

Use precisely the water and energy needed for your laundry with automatic load recognition.
Economical, powerful and maintenance-free
Economical, powerful and maintenance-free

ProfiEco motor4,

Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.

Cleaning performance

Best liquid detergent system with push of a button
Best liquid detergent system with push of a button

TwinDos® automatic detergent dispensing6,

Dispensing the right amount at key moments throughout a wash programme saves you up to 30 %5, detergent.
Always the right detergent for every application
Always the right detergent for every application

CapDosing portioned dispensing7,

Our portioned caps are available with a range of specialised detergents tailored to match your wash programmes.

Washing programs

Optimum care of synthetic fibres
Optimum care of synthetic fibres

Delicates

Gentle & soft: with the special programme synthetic textiles stay beautiful & keep their shape.
Most gentle treatment of your favourite garments
Most gentle treatment of your favourite garments

Woollens

No shrinkage, no felting: Delicate wool fabrics are cared for particularly gently, maintaining their quality.
Business as usual
Business as usual

Shirts

Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.
Equip textiles with functions
Equip textiles with functions

Proofing

Best possible effect: Thermally fixing ensures optimum water-repellent properties.

Gentle laundry care

Keep your clothing safe while tumbling
Keep your clothing safe while tumbling

Honeycomb drum

Our protective drum allows fabrics to safely glide along without snagging and damaging them.
Up to 50 % less ironing
Up to 50 % less ironing

Pre-ironing with steam8,

A specialised steaming feature that reduces wrinkles, saving you substantial effort and time ironing your clothes.

Matching products and accessories

Washer-dryer stacking kit

Washer-dryer stacking kit

For space-saving and safe installation of a washer-dryer stack.

AED499
Washer-dryer stacking kit
WTV 502

Washer-dryer stacking kit

For space-saving and safe installation of a washer-dryer stack.

AED499
Washer-dryer stacking kit

Washer-dryer stacking kit

with an integrated drawer for a particularly convenient washer-dryer stack.

AED1,699
Washer-dryer stacking kit

Washer-dryer stacking kit

with an integrated drawer for a particularly convenient washer-dryer stack.

AED1,699
Miele UltraPhase 1 and 2
Set 6 UltraPhase

Miele UltraPhase 1 and 2

Half-year supply of Miele detergents

AED529
WoolCare caps
WA CWC 0902 L

WoolCare caps

9-pack wool and delicates detergent. EasyOpen.

AED79
Miele UltraPhase 1
WA UP1 1402 L

Miele UltraPhase 1

2-component detergent for whites, colours and delicates.

AED99
Miele UltraPhase 2
WA UP2 1403 L

Miele UltraPhase 2

universal UltraPhase 2 suitable for every UltraPhase 1.

AED99
IntenseClean – 200 g appliance cleaner

IntenseClean – 200 g appliance cleaner

For hygienic cleanliness in dishwashers and washing machines

AED69

Downloads

Product Fact Sheet
PDF
Downloads
User manual
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000018/200001844/20000184418.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
W1 drawing, facia 5 degree, measures in mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000018/200001844/20000184419.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
W1 drawing, facia 5 degree, measures in mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000018/200001844/20000184420.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
W1 drawing, facia 5 degree, measures in mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000018/200001844/20000184421.png
Descriptions
W1 drawing, facia 5 degree, measures in mm
W1 drawing, facia 5 degree, measures in mm
POSTSCRIPT
Downloads
  • 1.All product prices incl. VAT at 5%.
  • 2.During the development phase of the W1 / W2 washing machine series, Miele tested models and core components in 5000 wash loads (= 5 wash loads per week for 50 weeks per year) in various programmes. More: miele.com/20years
  • 3.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • 4.Patent EP 2 840 679
  • 5.According to Öko-Institut e.V. report dated 06.09.2013: “Potential savings with automatic TwinDos ® dispensing on washing machines”.
  • 6.Patent EP 2 784 205
  • 7.Patent EP 2 365 120
  • 8.Patent EP 2 088 231

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
