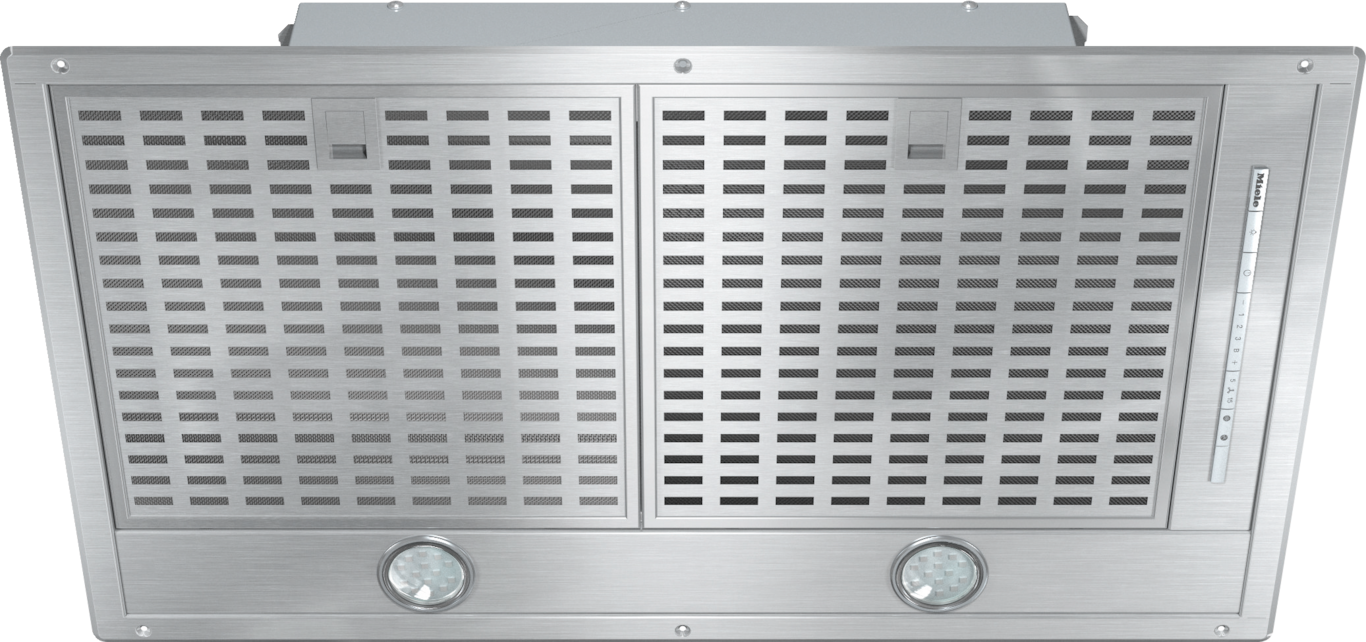

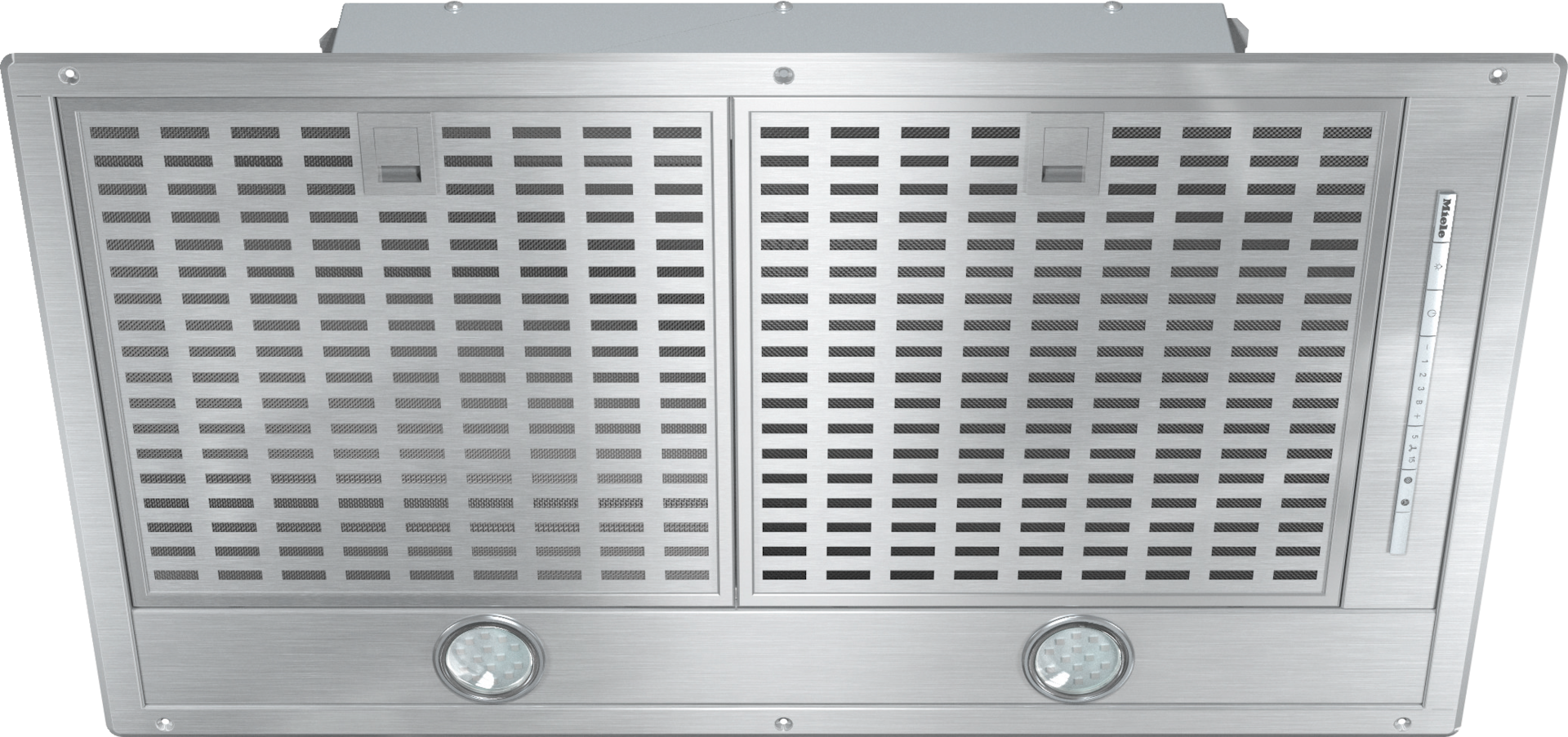

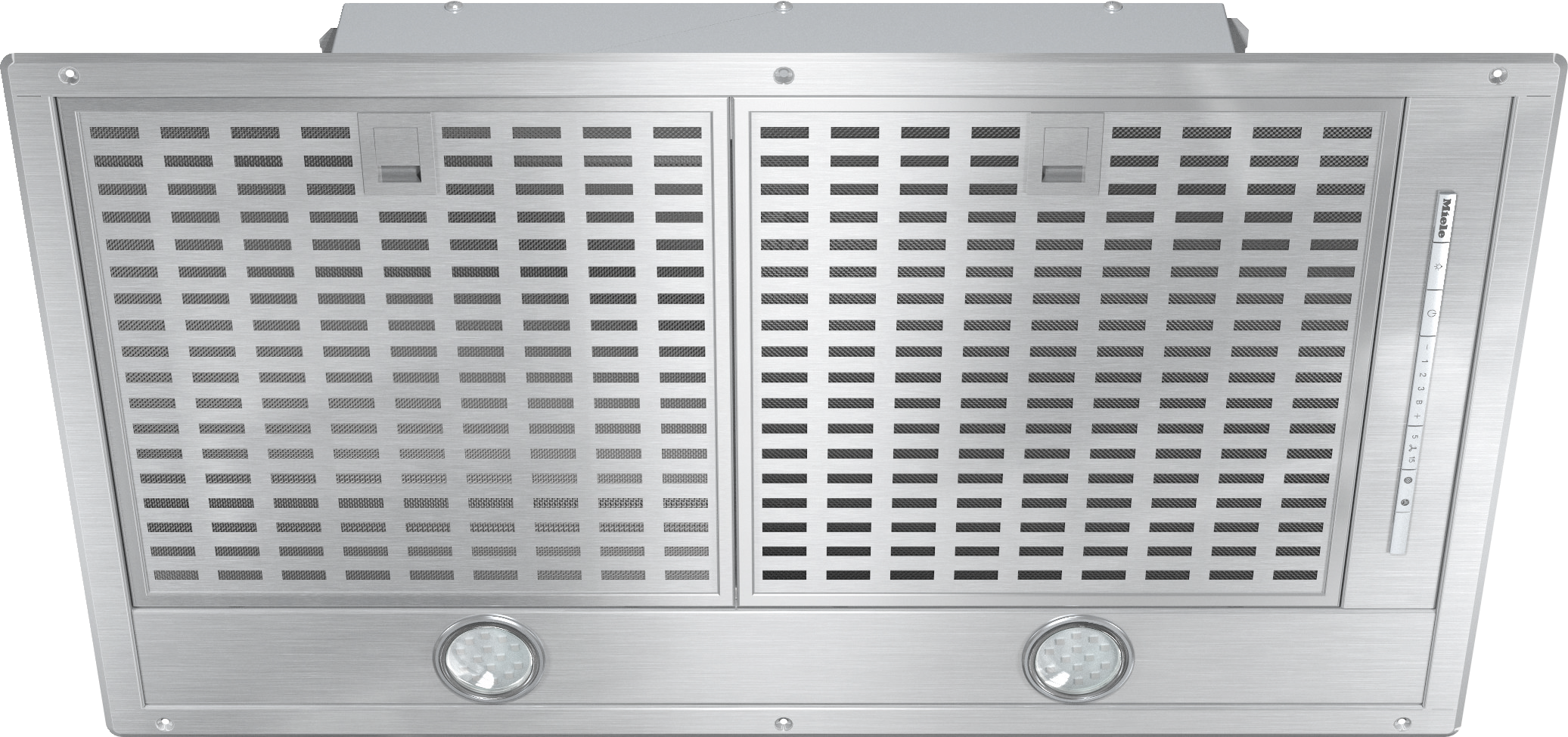

  • Miele UAE - DA 2578 Stainless steel – Cooker hoods - 1
  • Miele UAE - DA 2578 Stainless steel – Cooker hoods - 2
Extractor unitGold

DA 2578 Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.
Colour:Stainless steel
sale priceAED6,200
1
All product prices incl. VAT at 5%.


Product details

  • Customised kitchen design - fully integrated in 702 mm width
  • Unique user convenience –
    Con@ctivity
  • Powerful – 600 m3/h in Booster level
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Safe and easy to clean -
    Miele CleanCover
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
DA 2578
Manufacturer material number
10851350
EAN number
4002515978276
Marketing class
Gold
Integrated extractor
Type of air guide
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 151
Active charcoal filter (order separately)
DKF 15-P
Colour
Stainless steel
Miele@home
Con@ctivity
Yes
Electronic controls
Controls
Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level)
3
Booster levels
1
Run-on time 5/15 min.
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover
Push notifications
RemoteUpdate
Smart Home Integration
Energy efficiency class (A+++ to D)
A
Annual energy consumption in kWh/year
51.7
Fluid dynamic efficiency class
A
Lighting efficiency class
A
Grease filtering efficiency class
B
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
Number x W
2 x 3 W
Light intensity in Lx
300 lx
Colour temperature in K
3000 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
250
Air throughput in Level 2 (m³/h) according to EN 61591
300
Air throughput in Level 3 (m³/h) according to EN 61591
360
Air throughput in Booster level 1 (m³/h) according to EN 61591
600
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
51
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
56
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
67
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
32
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
37
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
41
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
52
Air throughput in Level 1 (m³/h) according to EN 61591
200
Air throughput in Level 2 (m³/h) according to EN 61591
250
Air throughput in Level 3 (m³/h) according to EN 61591
320
Air throughput in Booster level 1 (m³/h) according to EN 61591
530
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
55
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
59
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
63
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
44
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
48
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
57
Safety shut-off
Canopy dimensions (W x H x D) in mm
702 x 50 x 402
Canopy width in in. (mm)
702
Canopy height in in. (mm)
50
Depth of hood canopy in in. (mm)
402
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
11.6
Length of supply lead in m
1.5
Standard plug fitted
Total rated load in kW
0.226
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm
150
Combination with WiFi-enabled Miele hob
recommended
Non-return flap
EAN
4002515978276

What's included

Non-return flap
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • More convenience when cooking
    More convenience when cooking

    Con@ctivity

    The cooker hood reacts automatically to the hob and the oven.

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

User convenience

More convenience when cooking
More convenience when cooking

Con@ctivity

The cooker hood reacts automatically to the hob and the oven.
Automatic fan run-on
Automatic fan run-on

Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Countdown time conveniently in view

Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate2,

    Bringing new functions directly to your appliance.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications2,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration2,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Mounting plan
PDF
Download
Operating instructions/Installation instructions
PDF
Download
Product Fact Sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000012/200001284/20000128436.png
Descriptions
DA2578 (Installation drawing)
1) Vent connection alternatively to rear, You will find further detailed measurements in the instructions for use!
