  • Miele UAE - DA 4248 V D Puristic Varia Stainless steel – Cooker hoods - 1
  • Miele UAE - DA 4248 V D Puristic Varia Stainless steel – Cooker hoods - 2
  • Miele UAE - DA 4248 V D Puristic Varia Stainless steel – Cooker hoods - 3
Island cooker hoodPlatinum

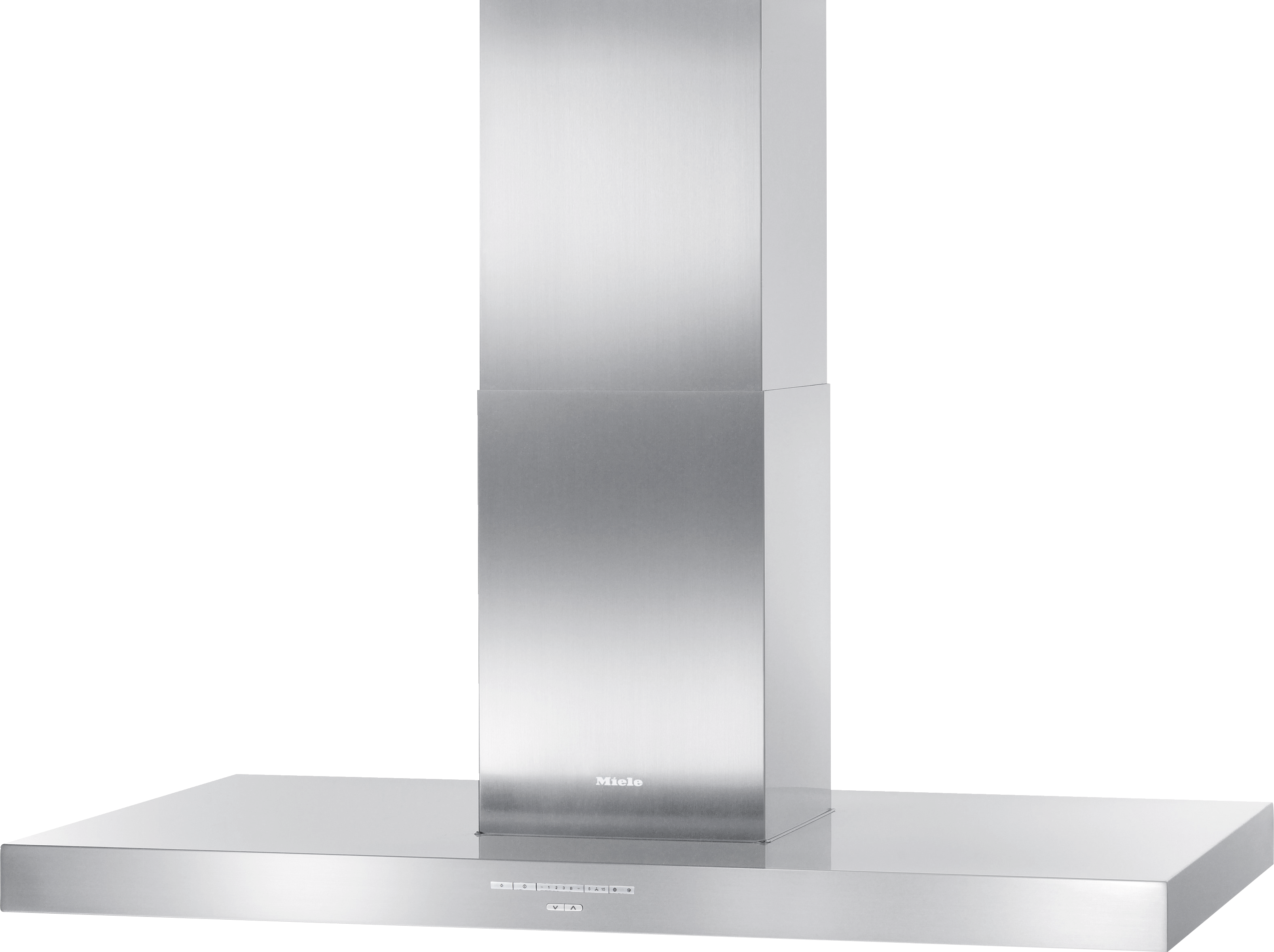

DA 4248 V D Puristic Varia Stainless steel

with energy-efficient LED lighting and light-touch switches for easy use.
Colour:Stainless steel
sale priceAED23,900
1
All product prices incl. VAT at 5%.


Product details

  • Timeless design – stainless steel canopy 1198 mm wide
  • Unique user convenience –
    Con@ctivity
  • Always at the right height - motorised height adjustment
  • Powerful – 675 m3/h in Booster level
  • Pleasantly quiet –
    Miele Silence package
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
DA 4248 V D Puristic Varia
Manufacturer material number
10767370
EAN number
4002515945506
Marketing class
Platinum
Island cooker hood
Type of air guide
Exhaust air
Colour
Stainless steel
Miele@home
Automatic function
Con@ctivity 3.0
Con@ctivity
Yes
Electronic controls
Controls
Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level)
3
Booster levels
1
Run-on time 5/15 min.
Grease filter saturation indicator
Silence package
Motor-operated cooker hoods
Easy-to-clean canopy interior – CleanCover
Push notifications
RemoteUpdate
Smart Home Integration
Energy efficiency class (A+++ to D)
A+
Annual energy consumption in kWh/year
30.8
Fluid dynamic efficiency class
A
Lighting efficiency class
A
Grease filtering efficiency class
A
PowerManagement system
Number of dishwasher-safe stainless steel grease filters (10-ply)
6
Number x W
4 x 3 W
Light intensity in Lx
600 lx
Colour temperature in K
3500 Kelvin
Dimmer function
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
180
Air throughput in Level 2 (m³/h) according to EN 61591
290
Air throughput in Level 3 (m³/h) according to EN 61591
420
Air throughput in Booster level 1 (m³/h) according to EN 61591
675
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
39
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
49
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
58
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
70
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
24
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
34
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
43
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
55
Safety shut-off
Canopy dimensions (W x H x D) in mm
1198 x 70 x 698
Overall hood height for extraction mode and external in mm
755–1045
Overall height for vented and external in in. (mm)
755
Overall height for extraction mode and external mode cooker hoods in mm
1045
Canopy width in in. (mm)
1198
Canopy height in in. (mm)
70
Depth of hood canopy in in. (mm)
698
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
45
Hard-wired connection
Total rated load in kW
0.292
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm
150
Telescopic chimney
Combination with WiFi-enabled Miele hob
recommended
Non-return flap
EAN
4002515945506

What's included

Non-return flap
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • Smart control
    Smart control

    Con@ctivity 3.0

    Innovative convenience: the cooker hood reacts automatically to settings on the hob.

  • More convenience when cooking
    More convenience when cooking

    Con@ctivity

    The cooker hood reacts automatically to the hob and the oven.

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Performance and convenience as standard
    Performance and convenience as standard

    Silence

    Efficient and quiet: the fan is effectively insulated with special soundproofing mats.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Performance and convenience as standard

Silence

Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

Setup/function

Smart control
Smart control

Con@ctivity 3.0

Innovative convenience: the cooker hood reacts automatically to settings on the hob.

User convenience

More convenience when cooking
More convenience when cooking

Con@ctivity

The cooker hood reacts automatically to the hob and the oven.
Automatic fan run-on
Automatic fan run-on

Run-on function

Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Countdown time conveniently in view
Countdown time conveniently in view

Filter indicator

Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Miele cooker hoods in motion
Miele cooker hoods in motion

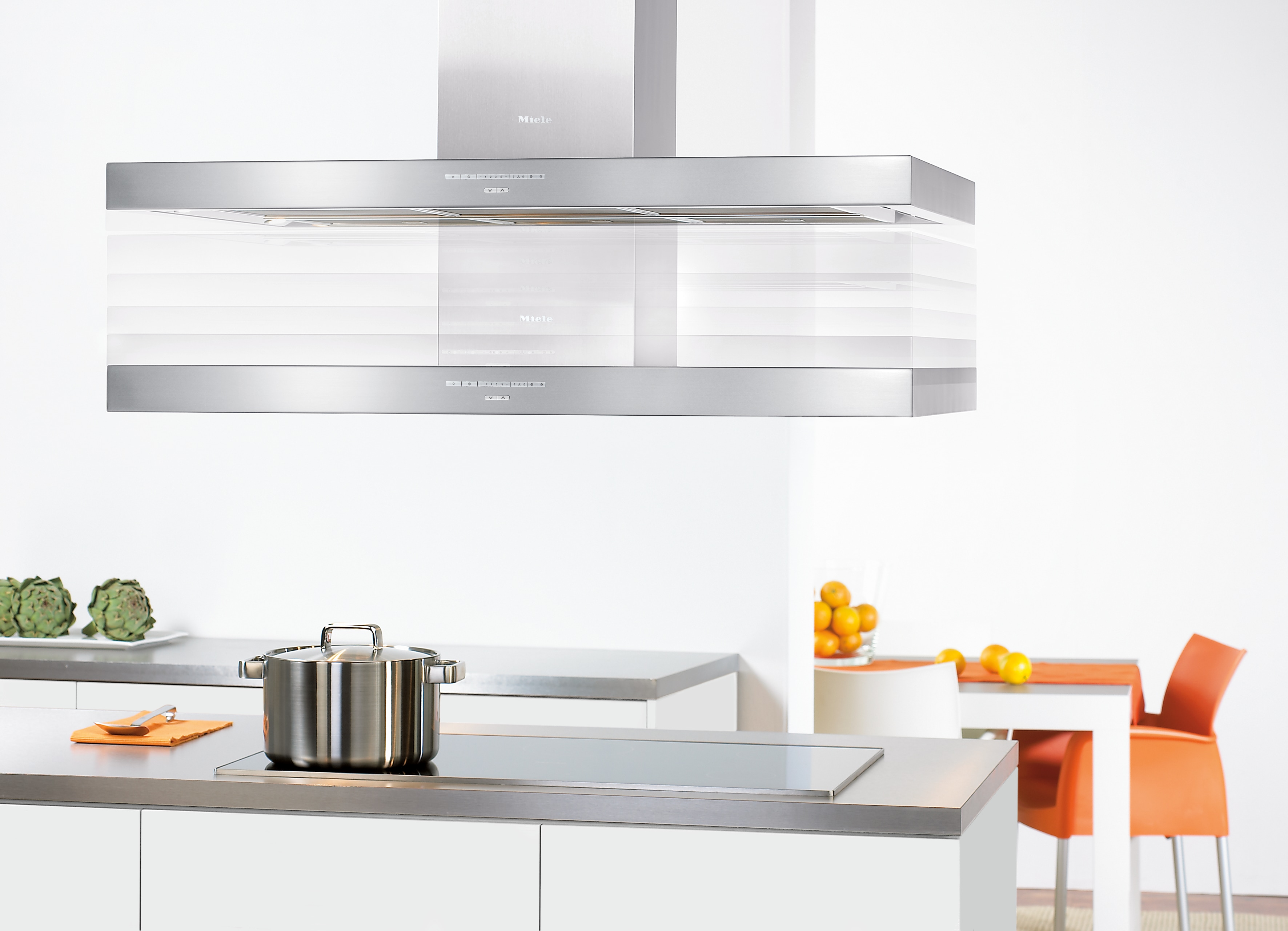

Hood in motion

Best possible ergonomics: The cooker hood canopy automatically moves to the ideal working position.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate2,

    Bringing new functions directly to your appliance.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications2,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration2,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Operating instructions/Installation instructions
PDF
Download
Product Fact Sheet
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000010/200001081/20000108161.png
Descriptions
DA 4248 VD (Installation drawing)
1) Installation area/site, 2) Installation alternatively with spacer frame, 3) A supply lead, and for vented mode flexible vent ducting, must be pre-fitted for the connection in the ceiling to the connection of the cooker hood.
POSTSCRIPT
Download
  • 1.All product prices incl. VAT at 5%.
  • 2.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
