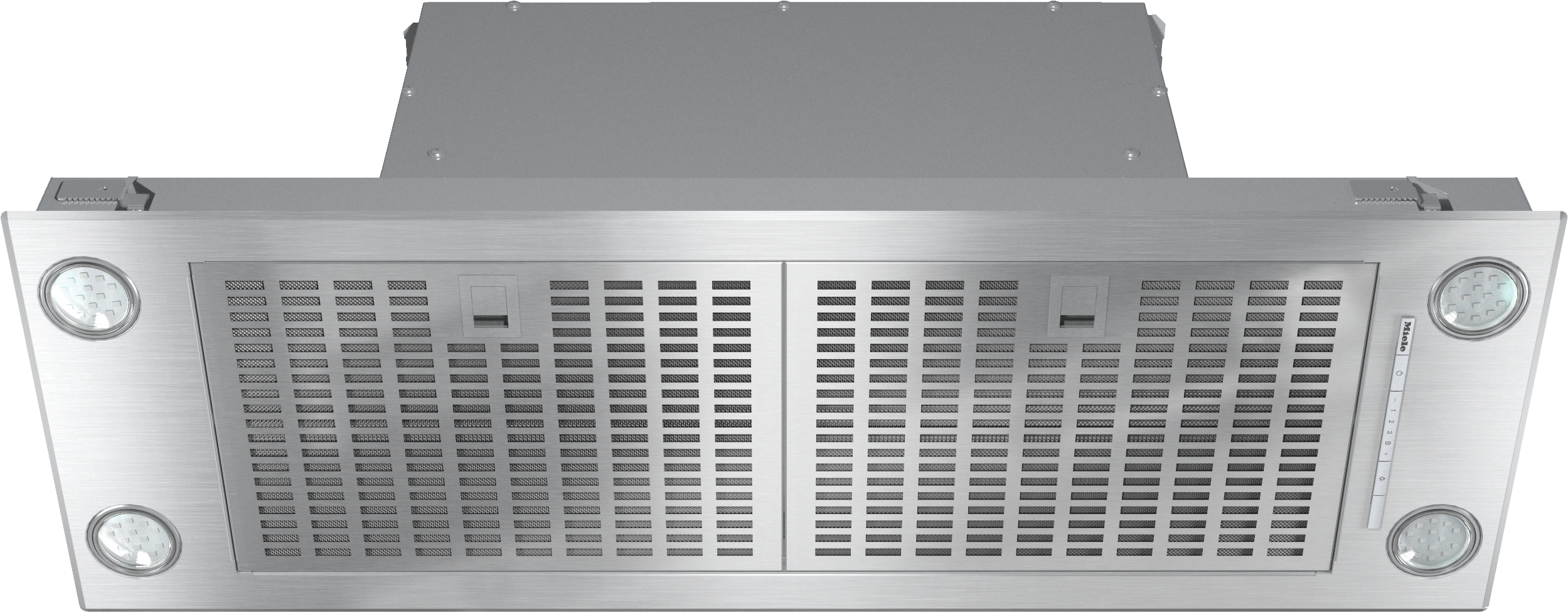

Extractor unitSILVER
DA 2390 Stainless steel
with energy-efficient LED lighting and light-touch switches for easy use.Colour:Stainless steel
Product details
- Customised kitchen design - fully integrated in 884 mm width
- Space saving - suitable for narrow wall units over 30 cm deep
- Powerful – 600 m3/h in Booster level
- Efficient filtration-10-ply stainless-steel grease filterLoading...
- Safe and easy to clean -Miele CleanCoverLoading...
- View manufacturer details:
- Safety Information
Model identifier DA 2390
Manufacturer material number 10451560
EAN number 4002515778302
Marketing class Silver
Loading...
Integrated extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 151
Active charcoal filter (order separately) DKF 19-P
Colour Stainless steel
Electronic controls

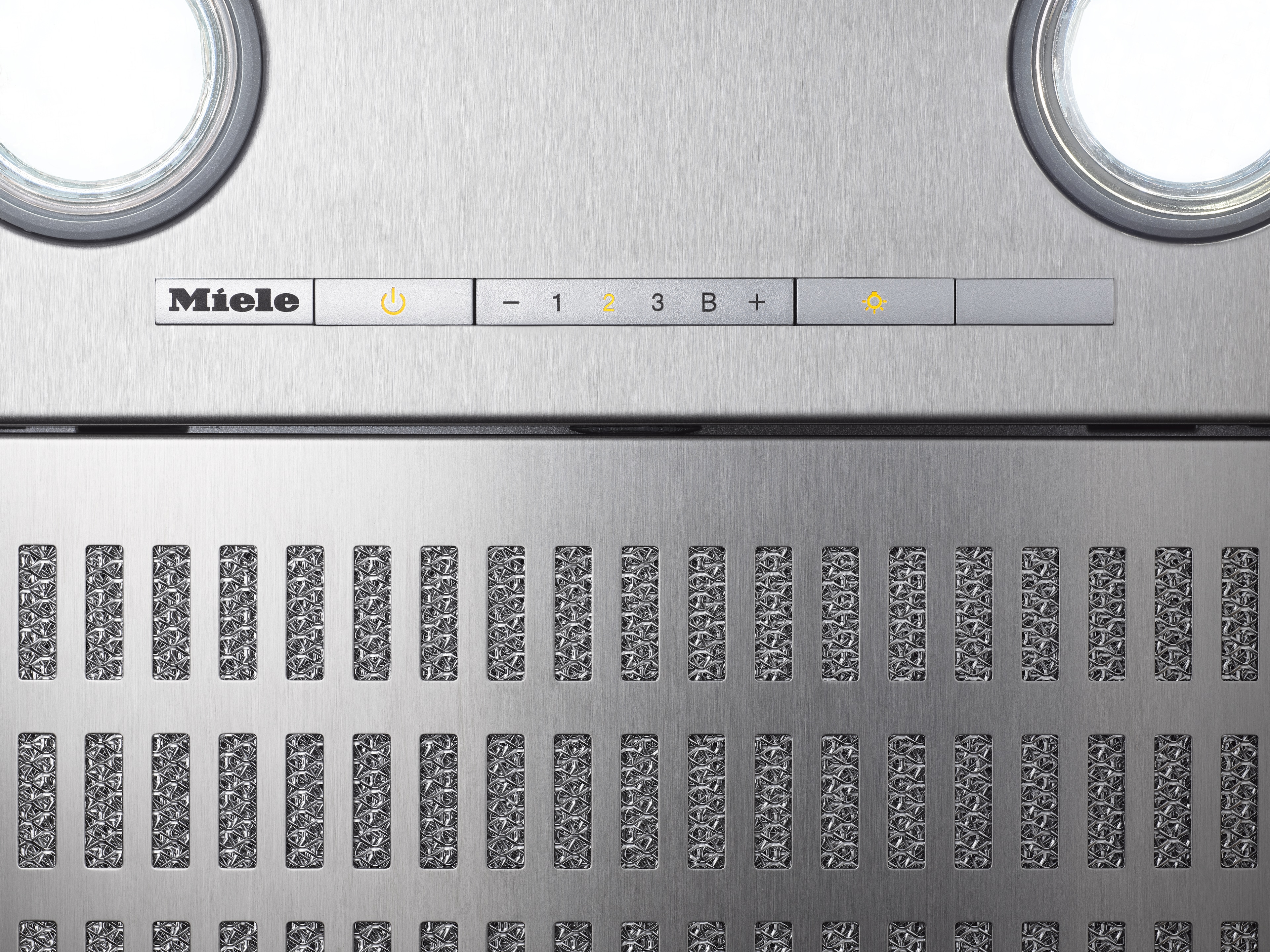

Controls Light-touch switches with LEDs
Power levels (number without Booster level) 3
Booster levels 1
Easy-to-clean canopy interior – CleanCover
Loading...
Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 55.3
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class A
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Loading...
Number x W 4 x 3 W
Light intensity in Lx 500 lx
Colour temperature in K 3000 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 250
Air throughput in Level 2 (m³/h) according to EN 61591 300
Air throughput in Level 3 (m³/h) according to EN 61591 360
Air throughput in Booster level 1 (m³/h) according to EN 61591 600
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 48
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 52
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 64
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 31
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 34
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in Level 1 (m³/h) according to EN 61591 190
Air throughput in Level 2 (m³/h) according to EN 61591 250
Air throughput in Level 3 (m³/h) according to EN 61591 320
Air throughput in Booster level 1 (m³/h) according to EN 61591 500
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 54
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 60
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 45
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety shut-off
Loading...
Canopy dimensions (W x H x D) in mm 884 x 63 x 297
Canopy width in in. (mm) 884
Canopy height in in. (mm) 63
Depth of hood canopy in in. (mm) 297
Minimum height above electric hobs in mm 450
Loading...
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Loading...
Net weight in kg 13
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.232
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 150
Non-return flap
Loading...
EAN 4002515778302
Non-return flap
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Always on the safe side
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
DA2390 (Installation drawing)
The cooker bonnet is fixed in the cut-out with the help of clamps. This requires a solid construction of the installation surface, e.g. made of wood. Make sure that the construction has sufficient load-bearing capacity. In the area of the clamps, components such as struts or pipes must have a distance of at least 25 mm from the cut-out., 1) Vent connection alternatively to rear POSTSCRIPT
