SmartLine elementPLATINUM

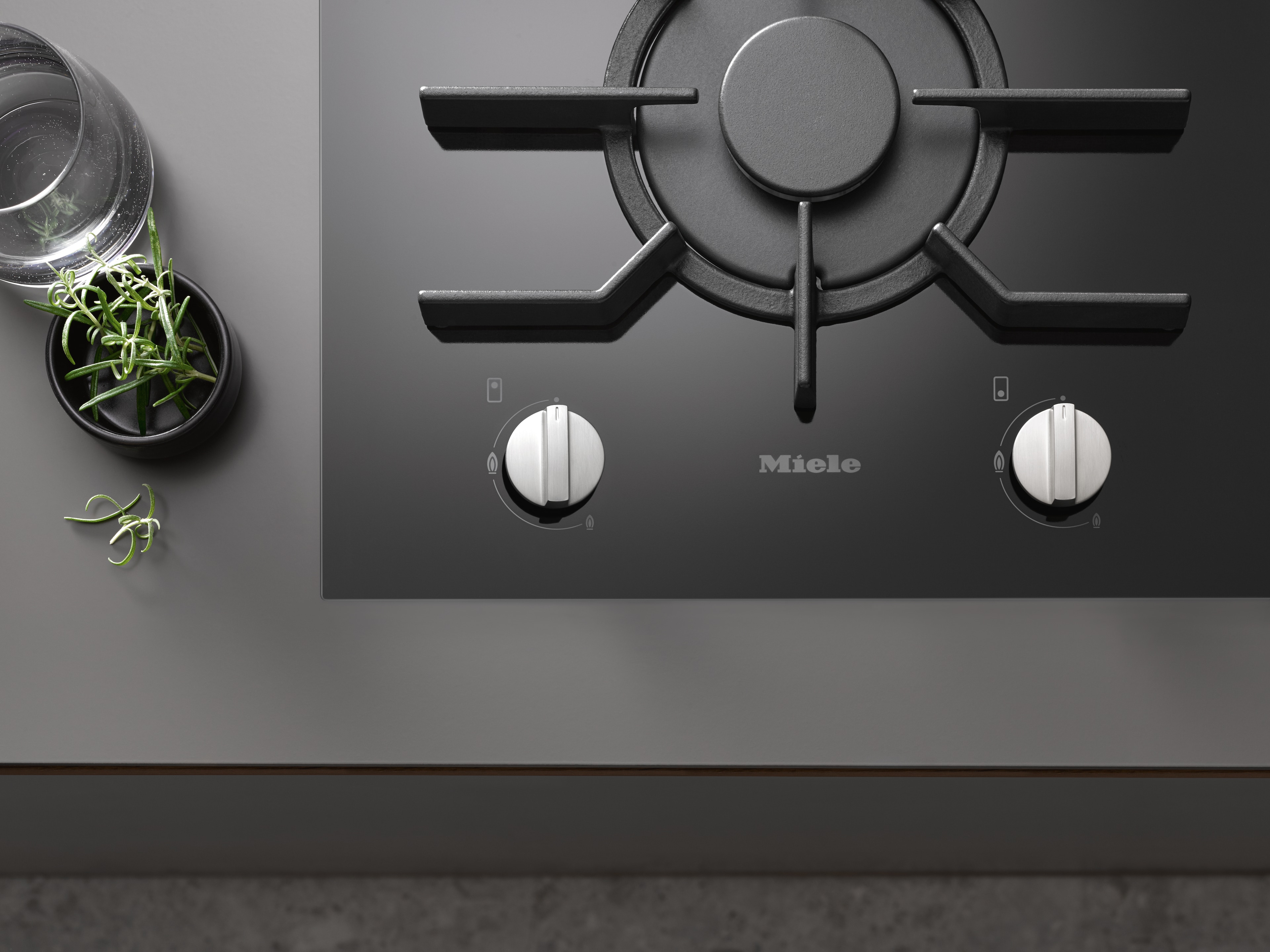

CS 7102-1 FL

with two burners
sale priceAED8,600
1
All product prices incl. VAT at 5%.


Product details

  • Simple controls -single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any
    SmartLine element
  • Particularly versatile - 1 medium burner and 1 large burner
  • Easy cleaning - dishwasher-safe ComfortClean pot rests
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier CS 7102-1 FL
Manufacturer material number 11402730
EAN number 4002516306252
Marketing class
Platinum
Heating type Gas
SmartLine
Elegant glass ceramic surface
Ceramic surface colour Black
Cast iron pot rests (matt black enamelled)
Flush
Surface-mounted installation
Number of cooking zones 2
Medium burner in kW 1.70
Large burner in kW 2.70
Position front centre
Type Standard burner
Size in mm Ø 120-220
Max. rating in W 1700
Position rear centre
Type High-speed burner
Size in mm Ø 140-240
Max. rating in W 2700
Operation via sensor controls Knob
Operation via knobs
Electronic ignition with single-hand operation
Easy to clean ceramic glass
Dishwasher-proof pot rests
GasStop
Dimensions (W x D) in mm 378 x 92 x 520
Dimensions in mm (width) 378
Dimensions in mm (height) 92
Dimensions in mm (depth) 520
Cut-out dimensions (W x D) with surface-mounted installation in mm 358 mm x 500 mm
Casing height incl. connection box in mm 92
Cutout dimensions in mm (width) with surface-mounted installation 358 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Internal cutout dimensions in mm (width) with flush installation 358
Internal cutout dimensions in mm (depth) with flush installation 500
External cutout dimensions in mm (width) with flush installation 382
External cutout dimensions in mm (depth) with flush installation 524
Weight in kg 7
Total rated load in kW 4.400
Position of gas connection Hinten links
Voltage in V 220-240
Frequency in Hz 50-60
Length of supply lead in m 1.4
CSFG 7000 FlameGuard
Mains cable
EAN 4002516306252

What's included

CSFG 7000 FlameGuard
Mains cable
Efficiently protects and makes cleaning easier
ComfortClean pot rests

Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

Flame failure monitor for maximum safety
GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

Safety

Flame failure monitor for maximum safety
GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

Design

Design in detail
Metal knobs

Perfect convenience: the gas elements can be intuitively operated via high-quality metal knobs.

User convenience

Easy ignition of the flame
Electronic ignition with single-handed operation

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.

Maintenance

Efficiently protects and makes cleaning easier
ComfortClean pot rests

Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

Matching products and accessories

Spacer strip

Spacer strip

for installing several SmartLine elements in one single cut-out.

AED399
Spacer strip

Spacer strip

for installing several SmartLine elements in one single cut-out.

AED399
Cover

Cover

For use next to downdraft extractor; prevents flames being sucked in.

AED999
Fiskars “All Steel” frying pan (28 cm)
KMBP 2800-2

Fiskars “All Steel” frying pan (28 cm)

made from stainless steel for lasting performance even at high temperatures.

AED829
Fiskars “All Steel” casserole (20 cm | 4 litres)
KMKT 2040-2

Fiskars “All Steel” casserole (20 cm | 4 litres)

stainless steel cookware with a matt brushed finish exclusively for Miele.

AED999
Fiskars “All Steel” casserole (18 cm | 2.5 litres)
KMKT 1825-2

Fiskars “All Steel” casserole (18 cm | 2.5 litres)

stainless steel cookware with a matt brushed finish exclusively for Miele.

AED829
 MicroCloth HyClean, 1 cloth
GP MI H 0011 W

 MicroCloth HyClean, 1 cloth

 Antibacterial multi-purpose cloth for improved hygiene.

AED39

Downloads

Operating instructions/Installation instructions
PDF
Downloads
Product Fact Sheet
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001320/20000132003.png
Descriptions
CS7102FL, CS7102-1FL flush (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden frame 12 mm (supplied loose), 5) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)
POSTSCRIPT
Downloads
https://media.miele.com/images/2000013/200001320/20000132004.png
Descriptions
CS7102FL, CS7102-1FL (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)
POSTSCRIPT
Downloads
https://media.miele.com/images/2000013/200001326/20000132666.png
Descriptions
CS 7000 FL (Installation drawing)
Installation drawings
POSTSCRIPT
Downloads
https://media.miele.com/images/2000013/200001355/20000135550.png
Descriptions
CS 7000 FL, flush (Installation drawing)
*7+0,5 = CS7611 (Wok)
POSTSCRIPT
Downloads
