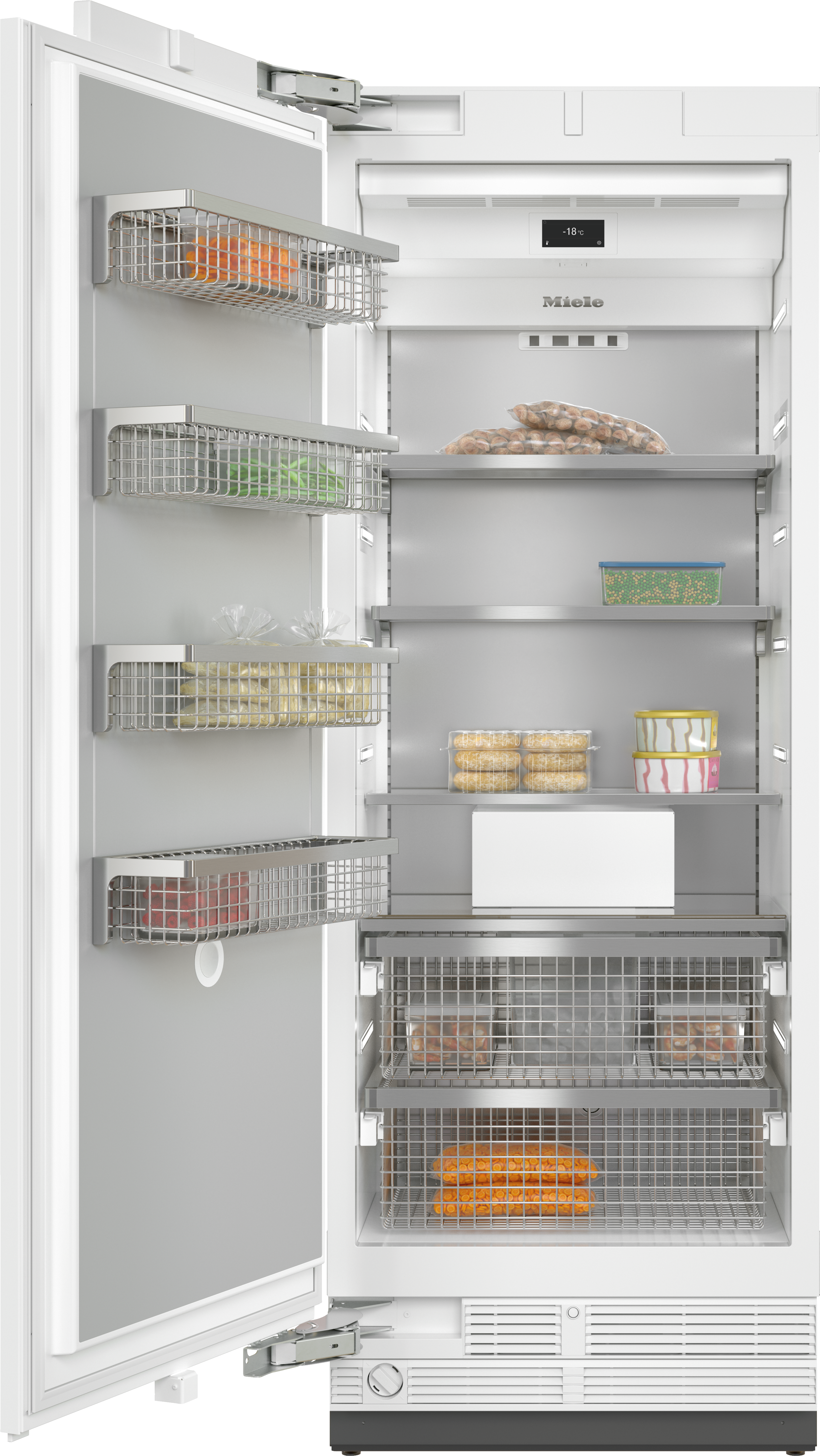

MasterCool freezerDIAMOND
F 2811 Vi
For high-end design and technology on a large scale.Product details
- Push2openfor convenient door-opening assistanceLoading...
- Light floods the interior thanks to LED elements –BrilliantLightLoading...
- Fresh ice cubes from theIceMakerwith mains water connectionLoading...
- Communication with appliances couldn't be easier –WiFiConn@ctLoading...
- Convenient control thanks to colour touch displayMasterSensorLoading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety Information
Model identifier F 2811 Vi
Manufacturer material number 11261300
EAN number 4002516199502
Marketing class Diamond
Loading...
Freezer
Built-in appliance
Integrated appliance
Door hinge Left
Convertible door hinging
Side-by-side enabled
Loading...
Lighting BrilliantLight
Loading...
Networking with Miele@home
Loading...
NoFrost
SoftClose
Loading...
IceMaker with mains water connection
Loading...
Push2open
Loading...
FullAccess
EasyClean
MaxLoad hinge
Loading...
Operating concept MasterSensor
Loading...
SuperFreeze
No. of temperature zones 1
Sabbath mode
Eco mode
Eco mode
Loading...
No. of shelves/surfaces 2
Number of freezer baskets 2
Door baskets – small 1
Door baskets – large 3
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min. 762
Niche width in mm max. 765
Niche height in mm min. 2134
Niche height in mm max. 2164
Niche depth in mm 629
Appliance dimensions (W x H x D) in mm 756 x 2127 x 610
Appliance width in mm 756
Appliance height in mm 2127
Appliance depth in mm 610
Weight in kg 158.8
Door hinge technology Fixed door
Max. door front weight – refrigerator, in kg 28
Climate class SN-T
4* freezer compartment in l 429
Storage time in case of fault in h 14
Current consumption (mA) 3000
Voltage in V 220-240
Fuse rating in A 13
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 3
Replacing lamps Service
Available display languages via MultiLingua [
"polski",
"english (AU)",
"français (FR)",
"yкраїнська",
"bahasa malaysia",
"latviesu",
"magyar",
"english (CA)",
"deutsch",
"english",
"slovenčina",
"română",
"slovenščina",
"pусский",
"suomi",
"italiano",
"dansk",
"繁體中文",
"hrvatski",
"english (US)",
"svenska",
"العربية",
"한국어",
"norsk",
"中文",
"日本語",
"nederlands",
"srpski",
"english (GB)",
"türkçe",
"español",
"ελληνιкά",
"eesti",
"čeština",
"français",
"lietuviu",
"français (CA)",
"português"
]
EAN 4002516199502
Ice cubes for cold drinks
MasterCool - IceMaker
Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.
Cleverly networked
Miele@home2,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Defrosting is a thing of the past
MasterCool – NoFrost
Convenient: a sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.
Perfectly lit
MasterCool – BrilliantLight
Soft and attractive: high-quality LED strips offer perfect illumination and a beautiful lighting mood.
The perfect solution for a handleless design
MasterCool – Push2open
This unique appliance integrates perfectly into handleless kitchens, as the door opens when you press the front.
MasterCool - IceMaker
Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.
MasterCool – MaxLoad hinges
Strong and robust: the door hinges are able to withstand high loads and make it easy to open large doors.Miele@home2,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.MasterCool – NoFrost
Convenient: a sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.
MasterCool – MasterSensor
Convenient operation: numerous settings can be configured with the tap of a finger.MasterCool – BrilliantLight
Soft and attractive: high-quality LED strips offer perfect illumination and a beautiful lighting mood.MasterCool – Push2open
This unique appliance integrates perfectly into handleless kitchens, as the door opens when you press the front.
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR) POSTSCRIPT
Descriptions
F2812Vi, F2813Vi, F2802Vi, F2811Vi, F2801Vi, MasterCool, inner space, installation drawings
F2812Vi, F2813Vi, F2802Vi, F2811Vi, F2801Vi, MasterCool, inner space, installation drawings POSTSCRIPT
Descriptions
KFP3005ed/cs, KFP3004ed/cs, Front panel, Front dimensions, MasterCool II, installation drawings
KFP3005ed/cs, KFP3004ed/cs, Front panel, Front dimensions, MasterCool II, installation drawings POSTSCRIPT
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B POSTSCRIPT
Descriptions
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000 mm (not for KON USA), 4. No water/ELT conections permitted in this area
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000 mm (not for KON USA), 4. No water/ELT conections permitted in this area POSTSCRIPT
Descriptions
A) Appliance door , F 2411 Vi: 525 mm (20 2/3 inch);, F 2412 Vi, F 2412 SF, F 2413Vi, F 2472 Vi, F 2472 SF: 525 mm (20 2/3 inch);, F 2671 Vi: 677 mm (26 2/3 inch); , F 2672 Vi, F 2672 SF: 677 mm (26 2/3 inch);, F 2812 SF, F 2812 Vi, F 2813 Vi: 829 mm (32 2/3 inch);, F 2912 Vi, F 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , F 2411 Vi: 237 mm (9 1/3 inch);, F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 237 mm (9 1/3 inch);, F 2672 Vi, F 2672 SF: 296 mm (11 2/3 inch);, F 2811 Vi: 363 mm (14 1/3 inch);, F 2812 SF, F 2812 Vi: 363 mm (14 1/3 inch);, F 2912 Vi, F 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch)
A) Appliance door , F 2411 Vi: 525 mm (20 2/3 inch);, F 2412 Vi, F 2412 SF, F 2413Vi, F 2472 Vi, F 2472 SF: 525 mm (20 2/3 inch);, F 2671 Vi: 677 mm (26 2/3 inch); , F 2672 Vi, F 2672 SF: 677 mm (26 2/3 inch);, F 2812 SF, F 2812 Vi, F 2813 Vi: 829 mm (32 2/3 inch);, F 2912 Vi, F 2912 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance from the door to the wall (without furniture front and door handle): , F 2411 Vi: 237 mm (9 1/3 inch);, F 2412 Vi, F 2412 SF, F 2472 Vi, F 2472 SF: 237 mm (9 1/3 inch);, F 2672 Vi, F 2672 SF: 296 mm (11 2/3 inch);, F 2811 Vi: 363 mm (14 1/3 inch);, F 2812 SF, F 2812 Vi: 363 mm (14 1/3 inch);, F 2912 Vi, F 2912 SF: 428 mm (16 7/8 inch);, E) ONLY valid for SF versions: A + 25 mm (1 inch) POSTSCRIPT
