Electric hob with onset controlsPLATINUM

KM 6565 FR

in maximum width for the ultimate in cooking and user convenience.
sale priceAED10,900
All product prices incl. VAT at 5%.


Product details

  • Intuitive quick selection via number sequences –
    Smart Select
  • Attractive design - 942 mm wide with all-round frame
  • Particularly versatile - 4 cooking zones incl. 1 extended/2 Vario zones
  • Unbeatably fast - 1
    ExtraSpeed cooking zone
  • Communication with the cooker hood – automatic
    Con@ctivity
    function
  • View manufacturer details:
  • You will find more information about product data and your rights under the EU Data Acthere
  • Safety Information

Product data sheet

Model identifier KM 6565 FR
Manufacturer material number 10882070
EAN number 4002515997628
Marketing class
Platinum
Heating type Electric
Independent of cooker
Elegant glass ceramic surface
Ceramic surface colour Black
Stainless-steel frame
Surface-mounted installation

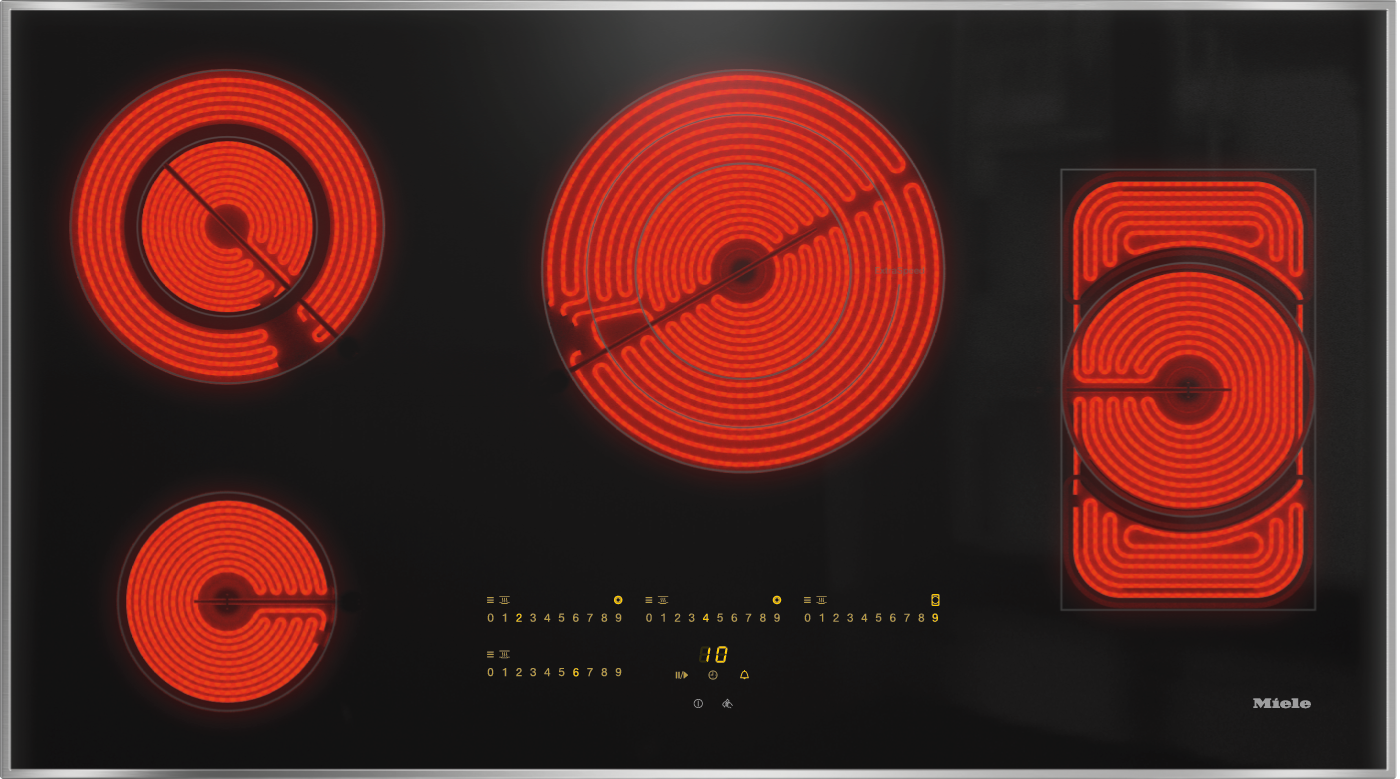

Number of cooking zones 4
Position front left
Type Single-circuit ring
Size in mm Ø 145
Max. rating in W 1200
Position rear left
Type Dual-circuit ring
Size in mm Ø 120 / Ø 210
Max. rating in W 750/2200
Position rear centre
Type ExtraSpeed
Size in mm Ø 145 / Ø 210 / Ø 270
Max. rating in W 1050/2050/3200
Position rear right
Type Casserole area
Size in mm Ø 170 / 170x290
Max. rating in W 1500/2600
Networking with Miele@home
Con@ctivity
Operation via sensor controls SmartSelect
Display colour Yellow
Stop & Go function
Wipe protection
Recall function
Extended cooking zone
Minute minder
Safety switch-off
Auto heat-up
Keeping warm
Individual setting options (e.g. buzzers)
Residual heat utilisation
Power rating in off mode in W 0.5
Power rating in standby mode in W 0.8
Power rating in networked standby in W 2
Time until automatic switch to off mode in min 10
Time until automatic switch to standby in min 10
Time until automatic switch to networked standby in min 10
Easy to clean ceramic glass
Safety switch-off
Lock function
System lock
Overheating protection
Residual heat indicator
Dimensions (H x W x D) in mm 50 x 942 x 526
Dimensions in mm (width) 942
Dimensions in mm (height) 50
Dimensions in mm (depth) 526
Cut-out dimensions (W x D) with surface-mounted installation in mm 916 mm x 500 mm
Casing height incl. connection box in mm 43
Cutout dimensions in mm (width) with surface-mounted installation 916 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 13
Total rated load in kW 9.200
Voltage in V 230
Frequency in Hz 50-60
Length of supply lead in m 1.4
Razor-blade scraper
Mains cable
EAN 4002515997628

What's included

Razor-blade scraper
Mains cable

Safety

For greater safety and security
Safety functions

The safety functions prevent any unpleasant surprises – even if your mind is on other things.

Setup/function

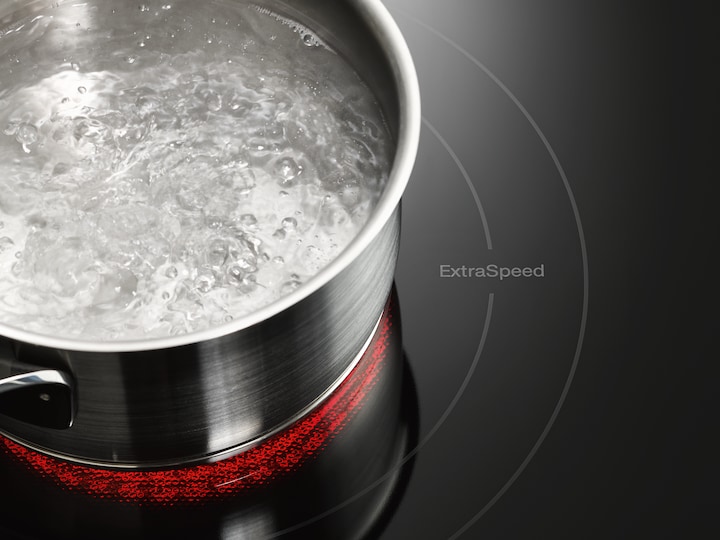

Hobs with an extra-fast cooking zone
ExtraSpeed2,

Even more time savings: Miele’s exclusive technology frees up more valuable time for you.


So that you can devote your time to other things
Keeping warm

Food kept at serving temperature: this function controls the temperature and prevents food from burning.


Smart control
Con@ctivity

Innovative convenience: the cooker hood reacts automatically to settings on the hob.


Added convenience
Convenient additional functions

Numerous additional functions such as Stop & Go and the timer make life easier in the kitchen.

User convenience

Cleverly networked
Domestic appliance networking with Miele@home3,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.


Saves not just energy
Auto heat-up

Always at the right time: This function reduces the initial power boost to prevent burning.


Depending on your needs
Programmable options

Completely unique: basic hob settings can be adapted to suit personal preferences.


Safe removal of soiling
Smear protection

Safe cleanliness: When activated, operation for simple cleaning is blocked for 20 seconds.

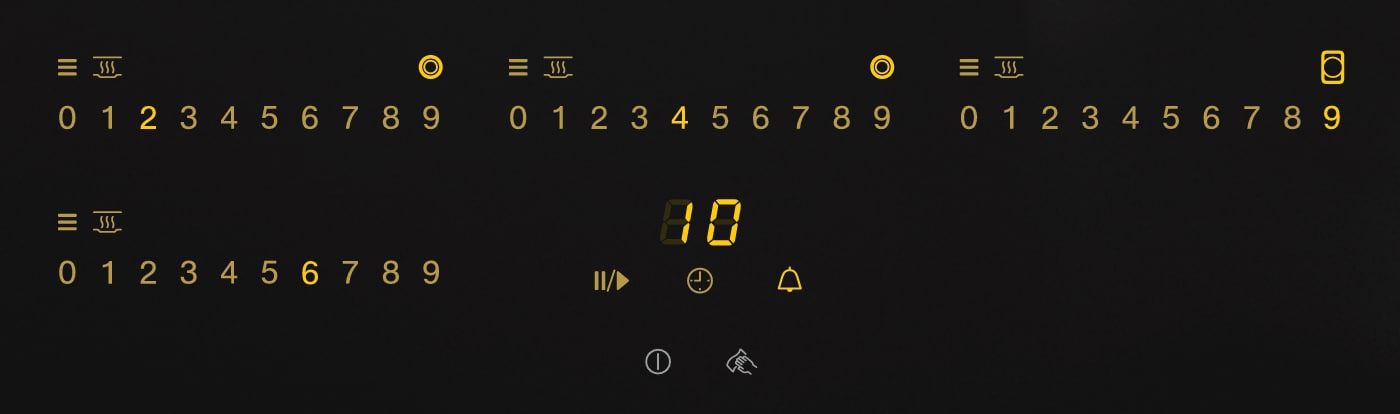

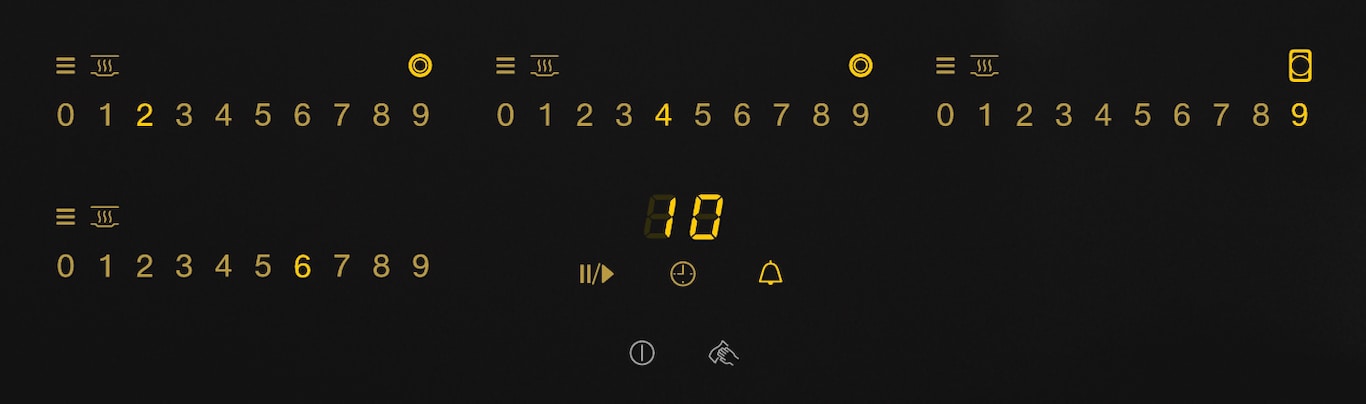

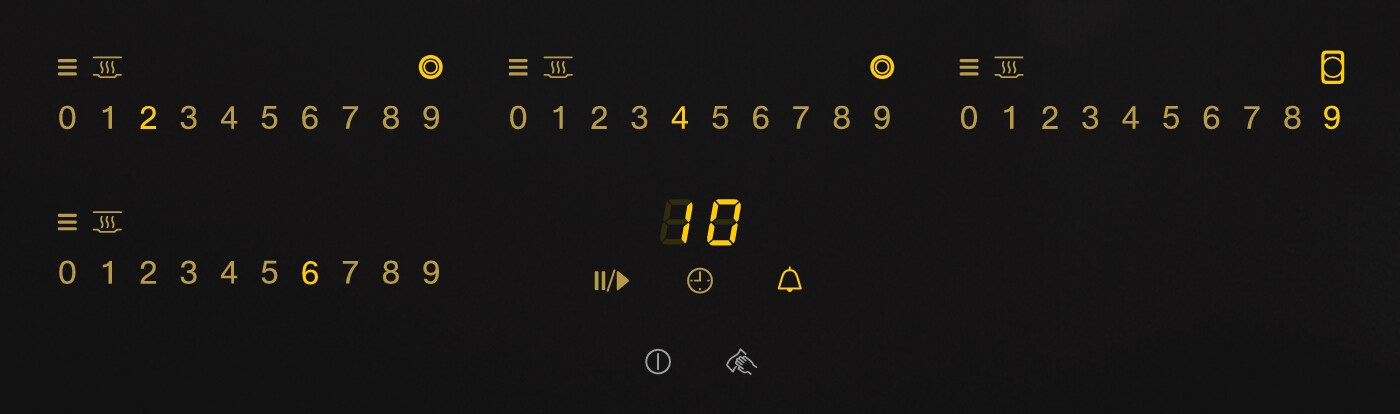

Easy operation with SmartSelect
SmartSelect

Quick and intuitive: power levels and times can be selected directly for each cooking zone.

Downloads

Operating instructions/Installation instructions
PDF
Downloads
Product Fact Sheet
PDF
Downloads
User manual
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001372/20000137206.png
Descriptions
KM 6565 FR (Installation drawing)
1) Front, 2) Mains connection box. Built-in height = 40 mm, mains connection cable L = 1440 mm , 3) WLAN stick connection point, 4) Clamp springs
POSTSCRIPT
Downloads
  • 1.All product prices incl. VAT at 5%.
  • 2.EP 2001267 (patented)
  • 3.This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
