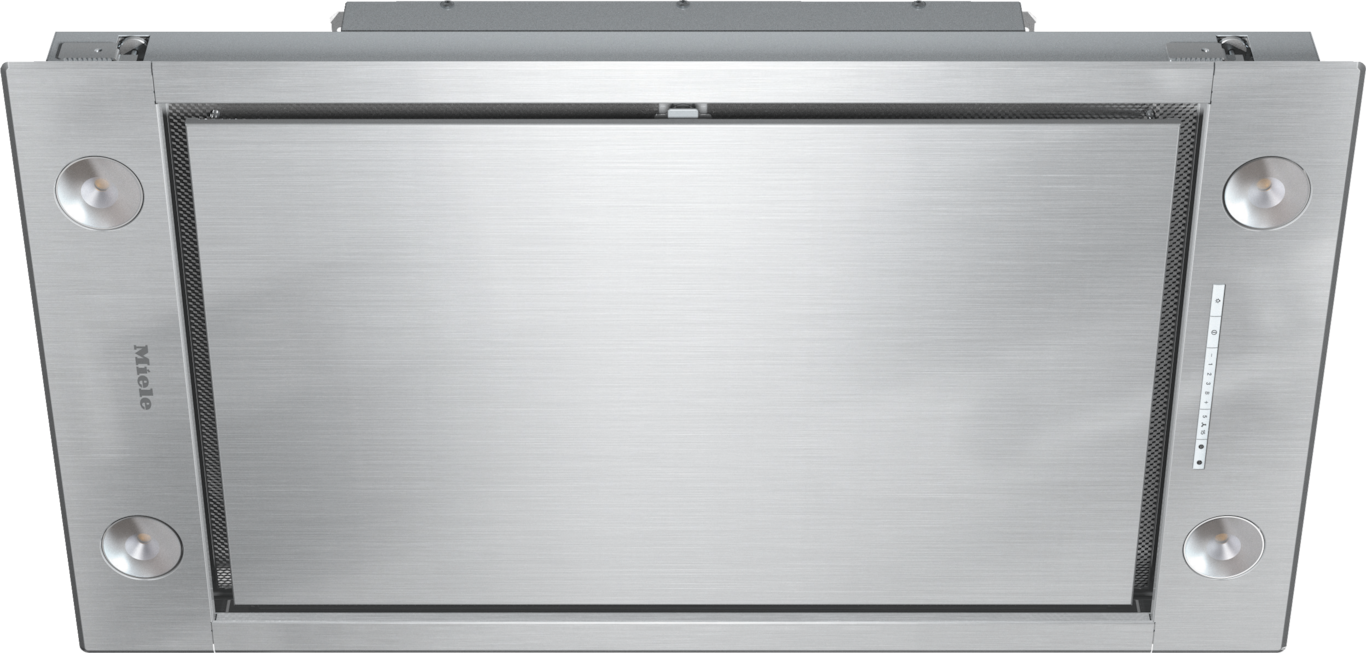

Ceiling extractor
DA 2808 Stainless steel
with energy-efficient LED lighting and light-touch switches for easy use.Colour:Stainless steel
Product details
- Elegant design - harmonious in the kitchen environment
- Unique user convenience –Con@ctivityLoading...
- Powerful – 725 m3/h in Booster level
- Energy-efficient and quiet - powerfulECO motorLoading...
- Efficient filtration-10-ply stainless-steel grease filterLoading...
- View manufacturer details:
- You will find more information about product data and your rights under the EU Data Acthere
- Safety Information
Model identifier DA 2808
Manufacturer material number 10751500
EAN number 4002515937112
Ceiling extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUU 2900
Active charcoal filter (order separately) DKF 20-P
Colour Stainless steel
Edge extraction
Miele@home
Con@ctivity Yes
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Loading...
Grease filter saturation indicator
Active charcoal filter saturation indicator
Easy-to-clean canopy interior – CleanCover
Loading...
Energy efficiency class (A+++ to D) A+
Annual energy consumption in kWh/year 27.6
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class B
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Loading...
Number x W 4 x 3 W
Light intensity in Lx 720 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 200
Air throughput in Level 2 (m³/h) according to EN 61591 310
Air throughput in Level 3 (m³/h) according to EN 61591 450
Air throughput in Booster level 1 (m³/h) according to EN 61591 725
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 35
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 65
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 20
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 38
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 50
Air throughput in Level 1 (m³/h) according to EN 61591 115
Air throughput in Level 2 (m³/h) according to EN 61591 215
Air throughput in Level 3 (m³/h) according to EN 61591 335
Air throughput in Booster level 1 (m³/h) according to EN 61591 535
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 43
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 53
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 28
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 39
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 47
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 57
Safety shut-off
Loading...
Canopy dimensions (W x H x D) in mm 880 x 342 x 500
Overall hood height for extraction mode and external in mm 339
Overall height for recirculation mode cooker hoods in mm 339
Overall height for vented and external in in. (mm) 339
Overall height for extraction mode and external mode cooker hoods in mm 339
Overall height for recirculation in in. (mm) 339
Overall height for recirculation mode cooker hoods in mm 339
Canopy width in in. (mm) 880
Canopy height in in. (mm) 342
Depth of hood canopy in in. (mm) 500
Minimum height above electric hobs in mm 450
Loading...
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Loading...
Net weight in kg 17
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.117
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Extraction ducting connection on side
Extraction ducting connection at top, rear, and si
Diameter of extraction ducting connection in mm 150
Combination with WiFi-enabled Miele hob required
Loading...
Non-return flap
Loading...
EAN 4002515937112
Non-return flap
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Edge extraction
Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.Matching products and accessories
Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions

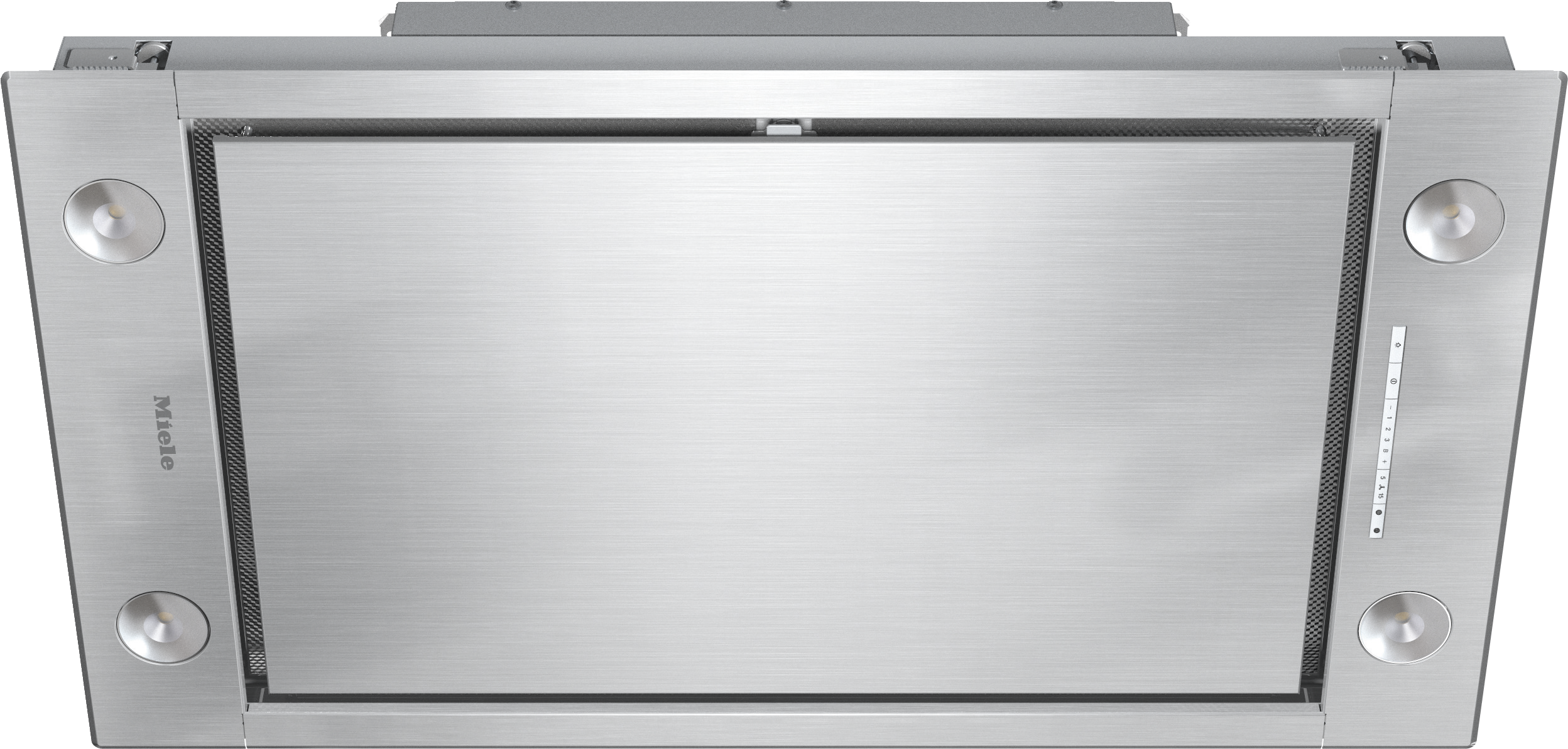

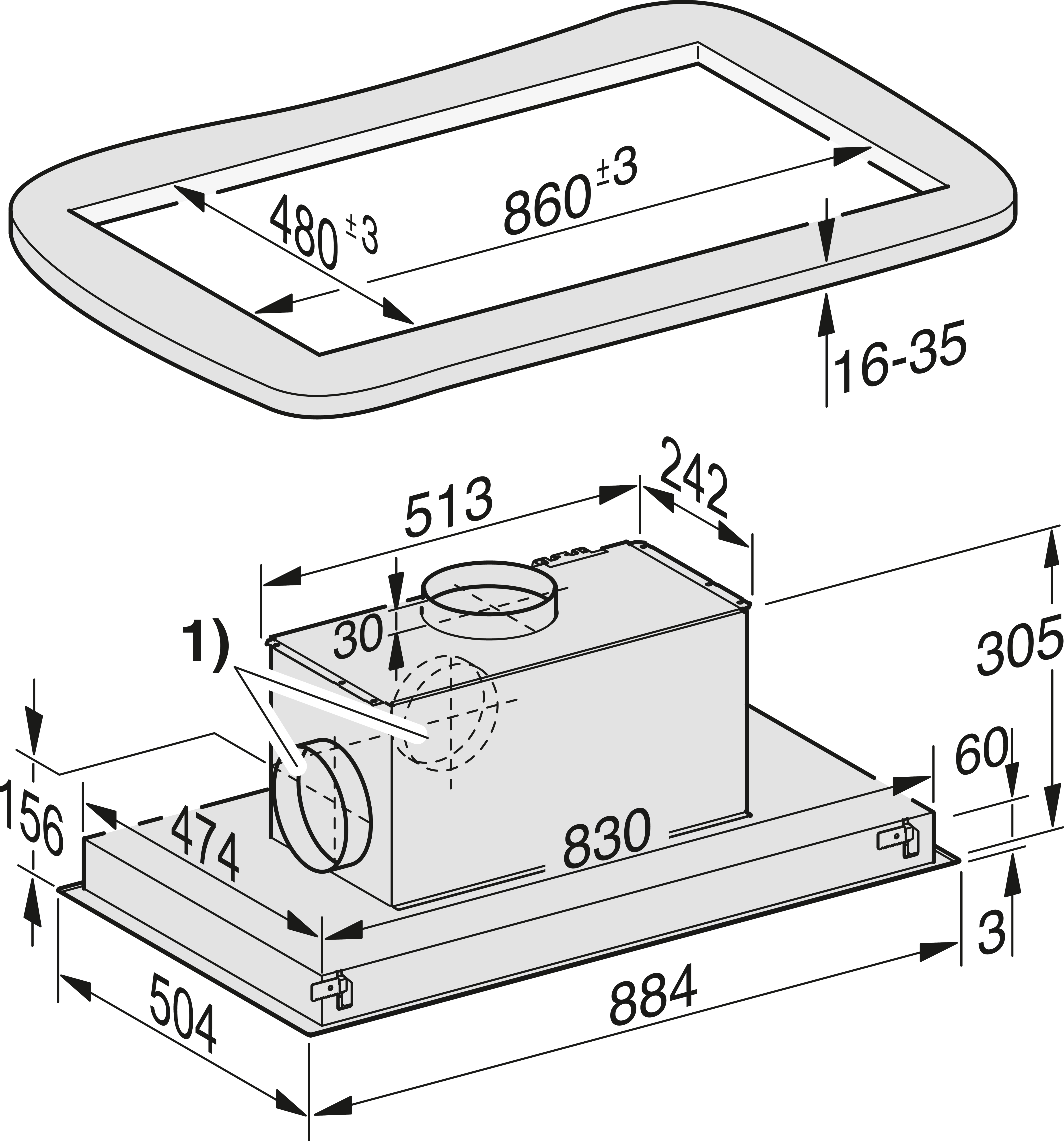

DA 2808 Stainless steel (factual image)

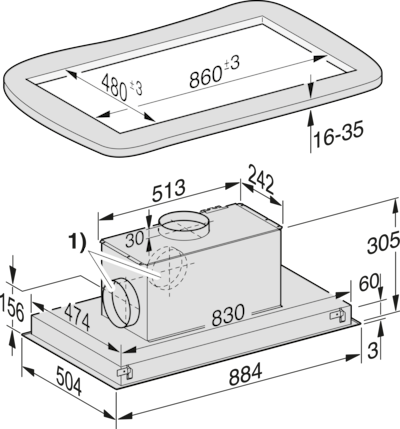

1) Vent connection alternatively to rear POSTSCRIPT
